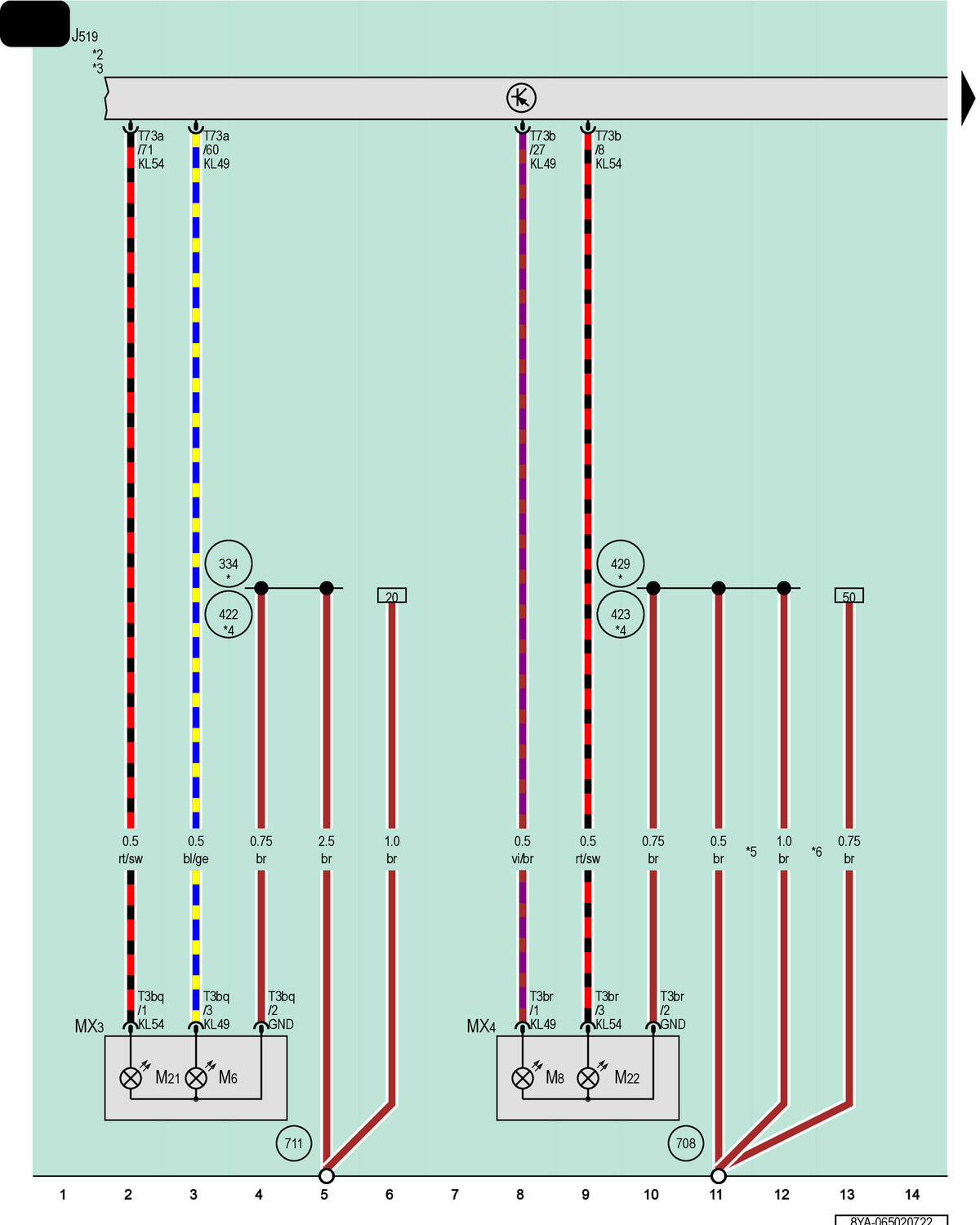

Vehicle Electrical System Control Module, Left Tail Lamp, Right Tail Lamp

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

MX3

Left Tail Lamp

MX4

Right Tail Lamp

M6

Left Rear Turn Signal Bulb

M8

Right Rear Turn Signal Bulb

M21

Left Brake/Tail Lamp Bulb

M22

Right Brake/Tail Lamp Bulb

T3bq

3-Pin Connector, Dark Blue

T3br

3-Pin Connector, Dark Blue

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

334

Ground Connection 6 (in Rear Wiring Harness)

422

Ground Connection 1 (in Left Rear Wiring Harness)

423

Ground Connection 1 (in Right Rear Wiring Harness)

429

Ground Connection 4 (in Right Rear Wiring Harness)

708

Ground Connection 2 on Right Rear Chassis Side Member

711

Ground Connection 3 on Left Rear Chassis Side Member

*

Sportback

*2

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*3

Refer to Applicable Wiring Diagram for Data Bus Networking

*4

Sedan

*5

Through November 2021

*6

From November 2021
