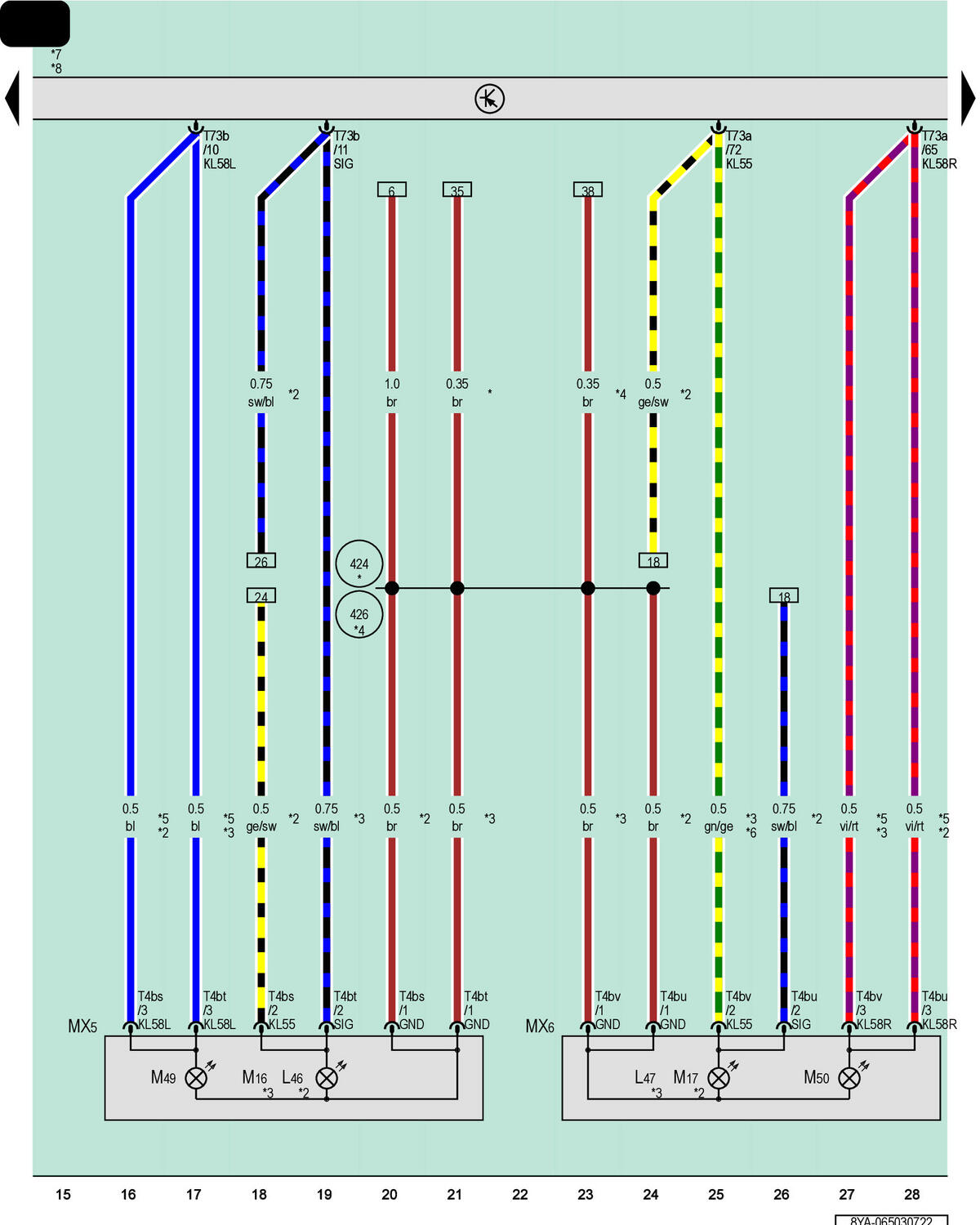

Vehicle Electrical System Control Module, Left Tail Lamp 2, Right Tail Lamp 2

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

L46

Left Rear Fog Lamp Bulb

L47

Right Rear Fog Lamp Bulb

MX5

Left Tail Lamp 2

MX6

Right Tail Lamp 2

M16

Left Back-Up Lamp Bulb

M17

Right Back-Up Lamp Bulb

M49

Left Tail Lamp Bulb 2

M50

Right Tail Lamp Bulb 2

T4bs

4-Pin Connector, Black

T4bt

4-Pin Connector, Brown

T4bu

4-Pin Connector, Black

T4bv

4-Pin Connector, Brown

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

424

Ground Connection 2 (in Left Rear Wiring Harness)

426

Ground Connection 3 (in Left Rear Wiring Harness)

*

Sportback

*2

For LHD Vehicles

*3

For RHD Vehicles

*4

Sedan

*5

Different Wire Color Possible

*6

The Color of the Wires Depends on Vehicle Equipment

*7

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*8

Refer to Applicable Wiring Diagram for Data Bus Networking
