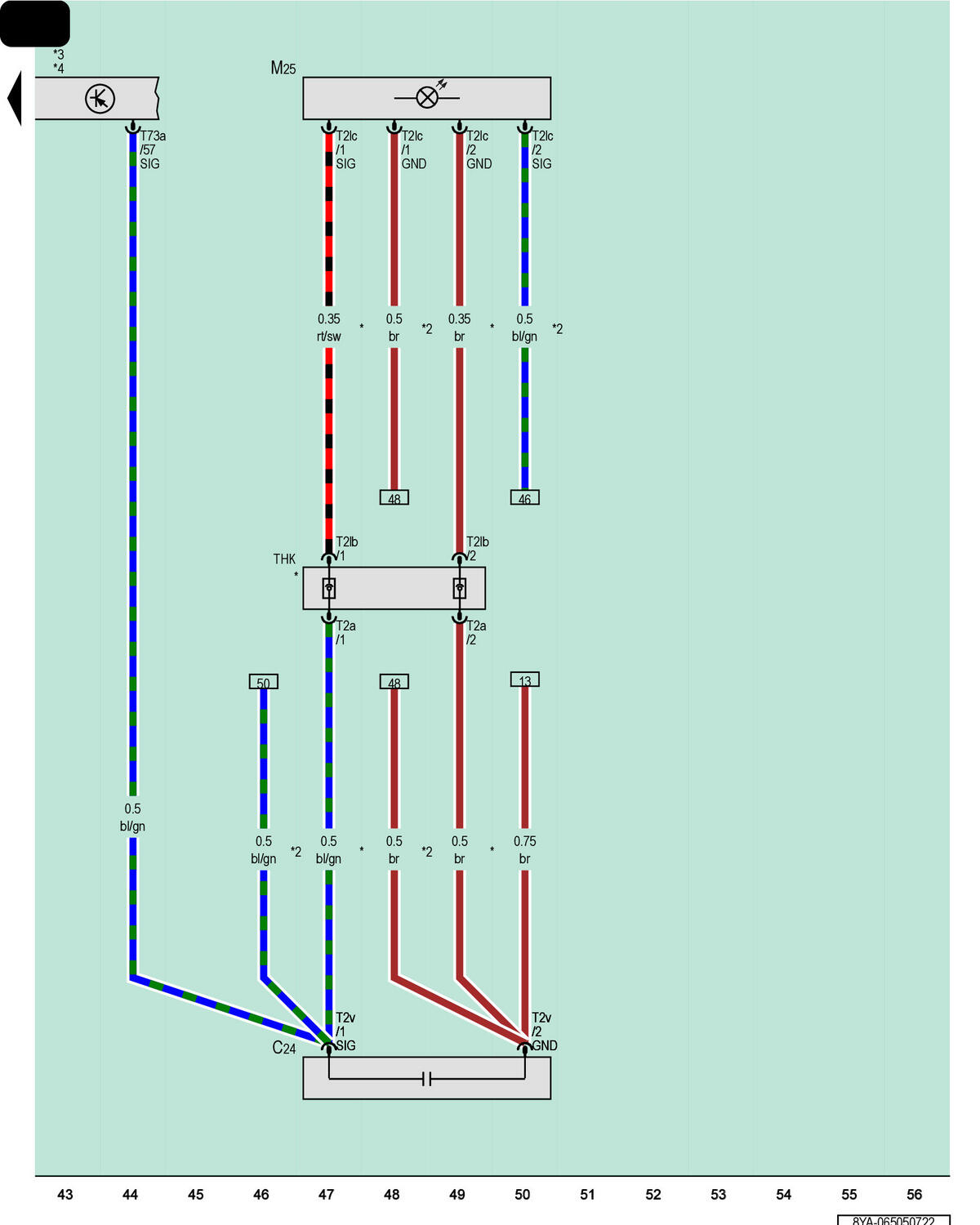

Suppressor, Vehicle Electrical System Control Module, High-Mounted Brake Lamp Bulb

Courtesy of AUDI OF AMERICA, LLC

C24

Suppressor

J519

Vehicle Electrical System Control Module

M25

High-Mounted Brake Lamp Bulb

T2a

2-Pin Connector, Black

T2lb

2-Pin Connector, Black

T2lc

2-Pin Connector, Black

T2v

2-Pin Connector, Black

T73a

73-Pin Connector, Black

THK

Rear Lid Coupling Point

*

Sportback

*2

Sedan

*3

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*4

Refer to Applicable Wiring Diagram for Data Bus Networking
