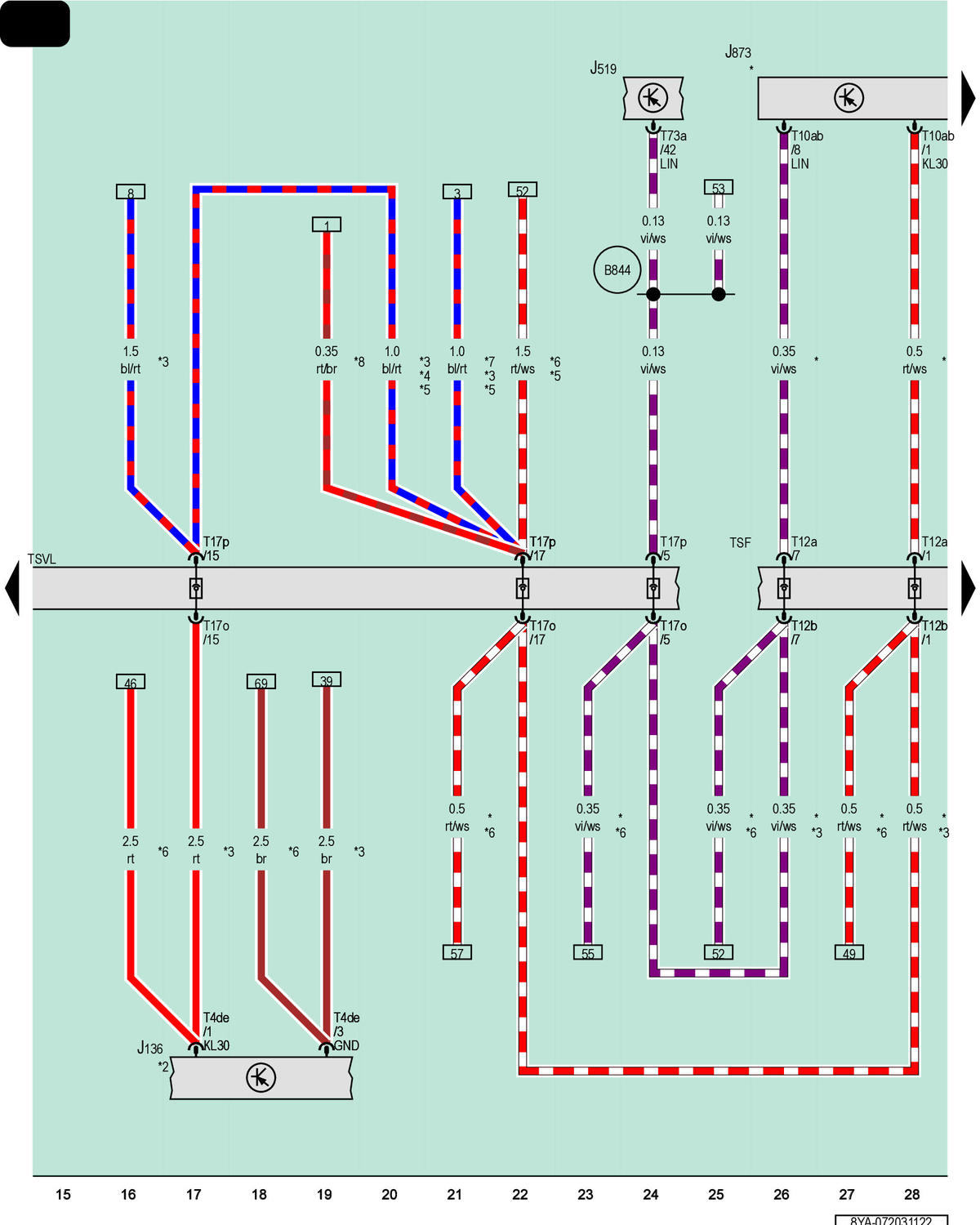

Memory Seat/Steering Column Adjustment Control Module, Vehicle Electrical System Control Module, Driver Multi-Contour Seat Control Module

Courtesy of AUDI OF AMERICA, LLC

J136

Memory Seat/Steering Column Adjustment Control Module

J519

Vehicle Electrical System Control Module

J873

Driver Multi-Contour Seat Control Module

T4de

4-Pin Connector, Black

T10ab

10-Pin Connector, Black

T12a

12-Pin Connector, Black

T12b

12-Pin Connector, Black

T17o

17-Pin Connector, Red

T17p

17-Pin Connector, Red

T73a

73-Pin Connector, Black

TSF

Driver Seat Backrest Coupling Point

TSVL

Left Front Seat Coupling Station

B844

LIN Bus Connection 10 (in Main Wiring Harness)

*

For Seat Adjustment with Massage Function

*2

Refer to Applicable Seat Adjustment Wiring Diagram

*3

For LHD Vehicles

*4

Through November 2020

*5

Through June 2021

*6

For RHD Vehicles

*7

Running Change

*8

From June 2021
