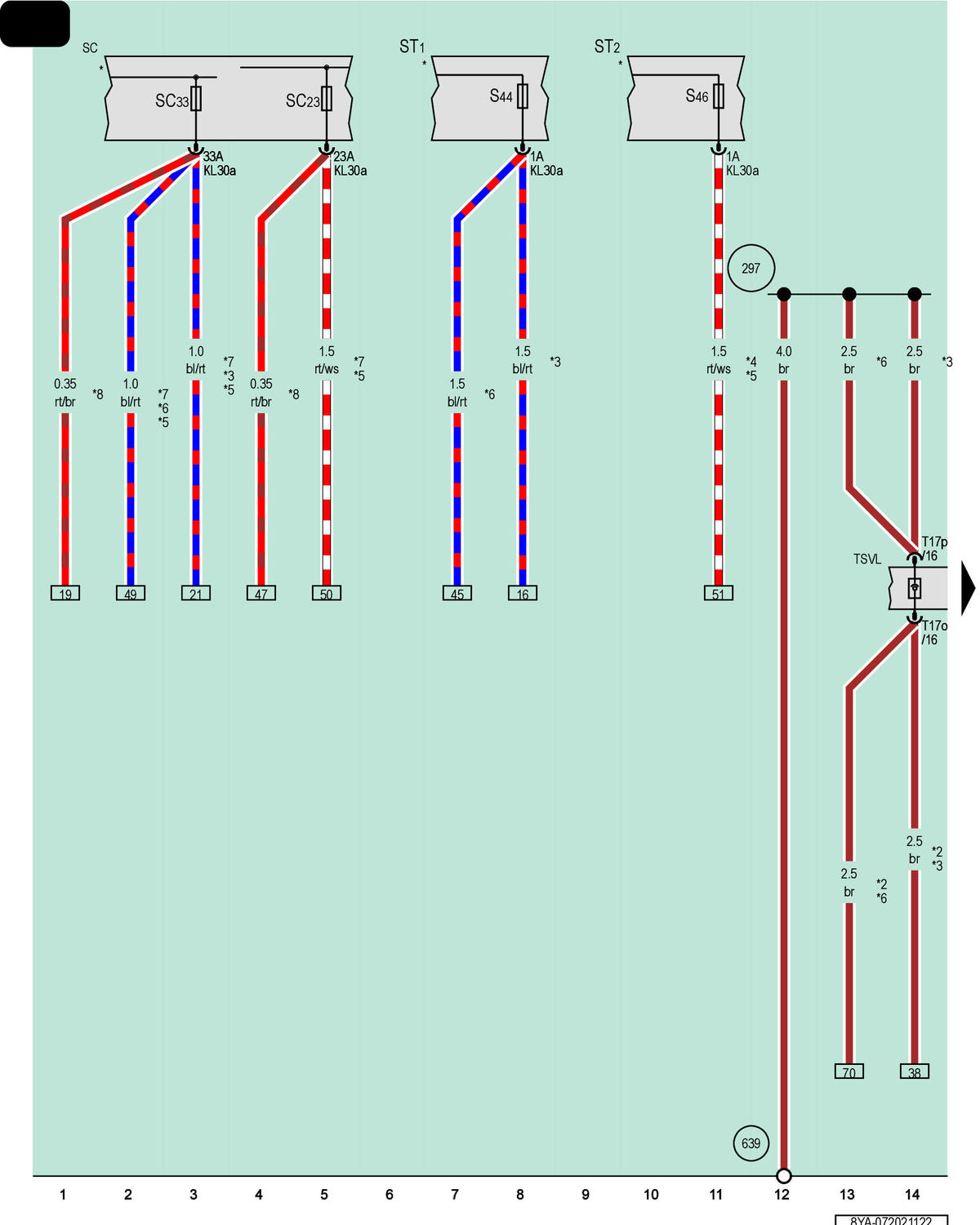

Fuse Panel C, Fuse Panel 1, Fuse Panel 2

Courtesy of AUDI OF AMERICA, LLC

SC

Fuse Panel C

ST1

Fuse Panel 1

ST2

Fuse Panel 2

SC23

Fuse 23 (On Fuse Panel C)

SC33

Fuse 33 (On Fuse Panel C)

S44

Driver Power Seat Adjustment Circuit Breaker 1

S46

Front Passenger Power Seat Adjustment Circuit Breaker 1

T17o

17-Pin Connector, Red

T17p

17-Pin Connector, Red

TSVL

Left Front Seat Coupling Station

297

Ground Connection 12 (in Interior Wiring Harness)

639

Ground Connection on Left A-Pillar

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

For Seat Adjustment with Massage Function

*3

For LHD Vehicles

*4

Through November 2020

*5

Through June 2021

*6

For RHD Vehicles

*7

Running Change

*8

From June 2021
