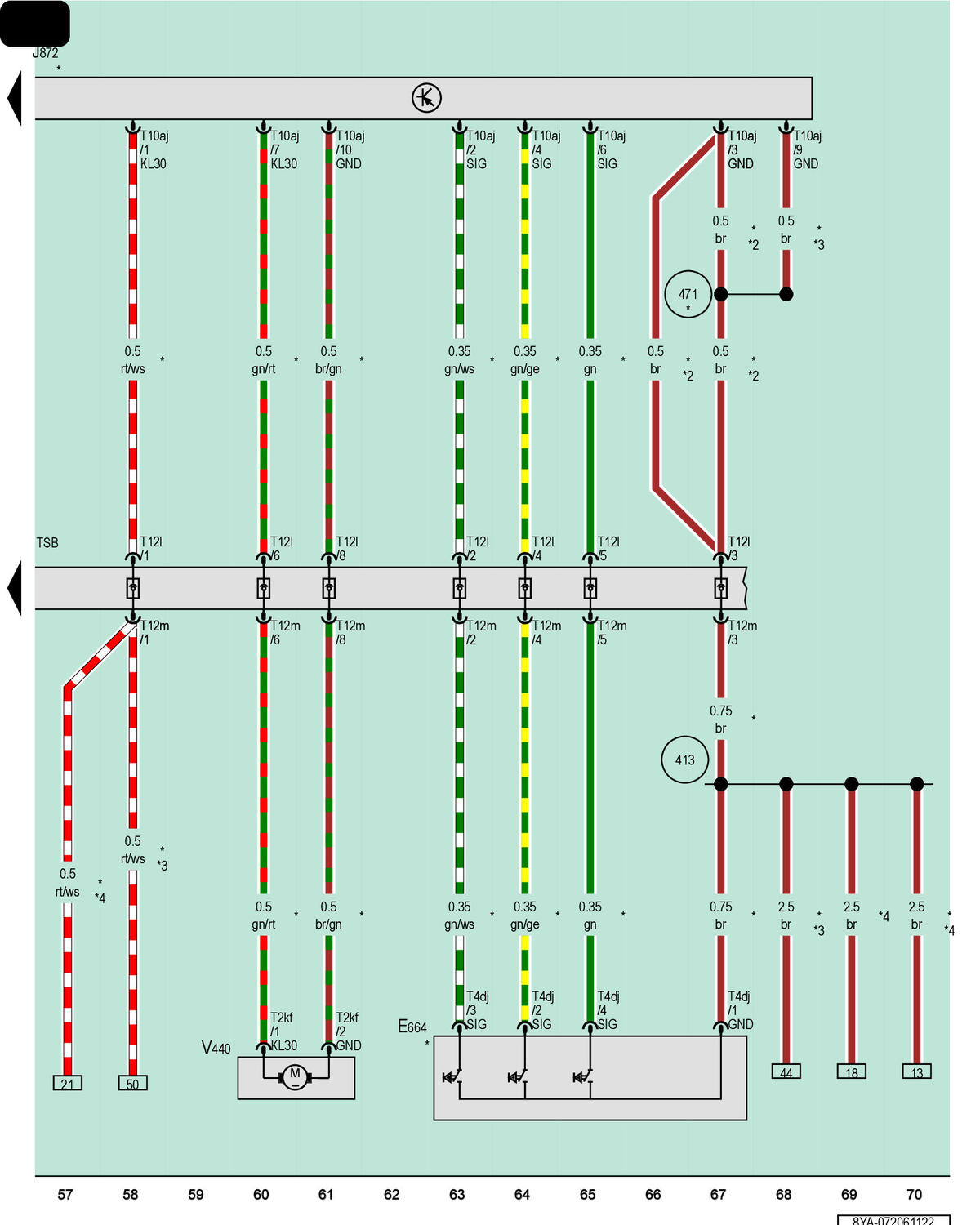

Front Passenger Seat Switch Module, Front Passenger Multi-Contour Seat Control Module, Front Passenger Multi-Contour Seat Compressor

Courtesy of AUDI OF AMERICA, LLC

E664

Front Passenger Seat Switch Module

J872

Front Passenger Multi-Contour Seat Control Module

T2kf

2-Pin Connector, Black

T4dj

4-Pin Connector, Black

T10aj

10-Pin Connector, Black

T12l

12-Pin Connector, Black

T12m

12-Pin Connector, Black

TSB

Front Passenger Seat Backrest Coupling Point

V440

Front Passenger Multi-Contour Seat Compressor

413

Ground Connection 4 (in Seat Adjustment Wiring Harness)

471

Ground Connection 5 (in Seat Adjustment Wiring Harness)

*

For Seat Adjustment with Massage Function

*2

Depending on Equipment

*3

For LHD Vehicles

*4

For RHD Vehicles
