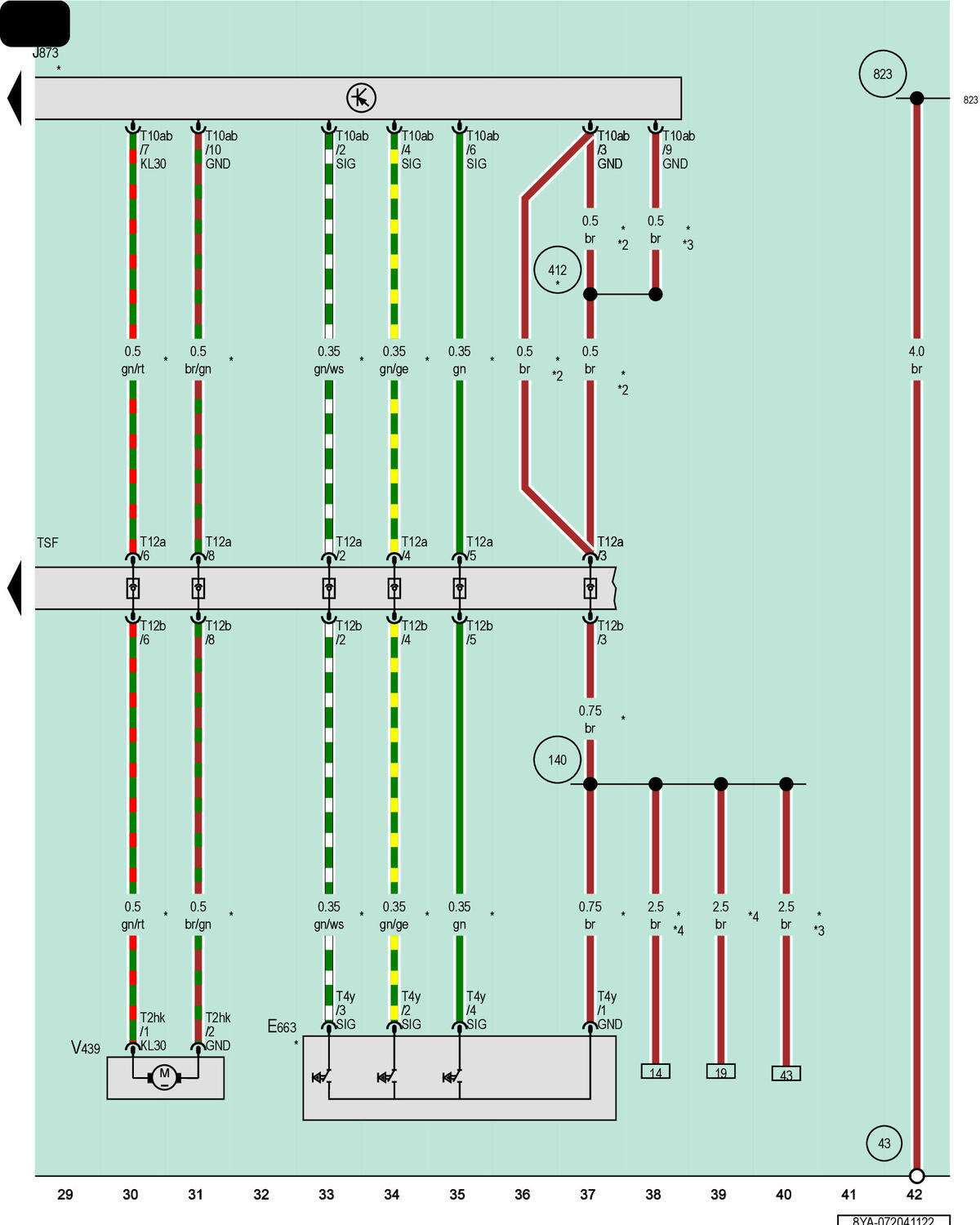

Driver Seat Switch Module, Driver Multi-Contour Seat Control Module, Driver Multi-Contour Seat Compressor
E663
Driver Seat Switch Module
J873
Driver Multi-Contour Seat Control Module
T2hk
2-Pin Connector, Black
T4y
4-Pin Connector, Black
T10ab
10-Pin Connector, Black
T12a
12-Pin Connector, Black
T12b
12-Pin Connector, Black
TSF
Driver Seat Backrest Coupling Point
V439
Driver Multi-Contour Seat Compressor
43
Ground Connection on A-Pillar, Lower Right
140
Ground Connection 2 (in Seat Adjustment Wiring Harness)
412
Ground Connection 3 (in Seat Adjustment Wiring Harness)
823
Ground Connection 16 (in Interior Wiring Harness)
*
For Seat Adjustment with Massage Function
*2
Depending on Equipment
*3
For RHD Vehicles
*4
For LHD Vehicles
