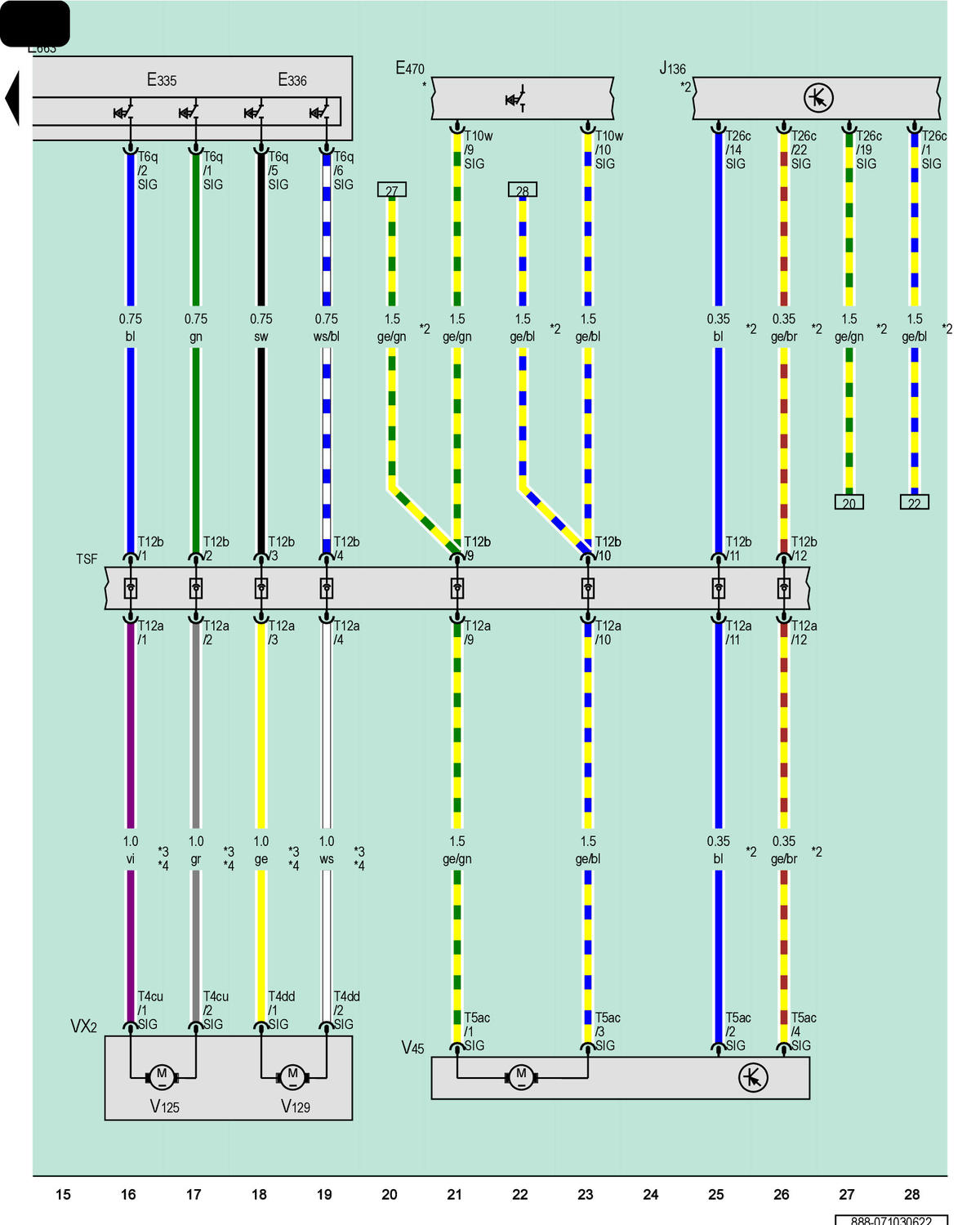

Driver Seat Adjustment Control Head, Driver Seat Switch Module, Memory Seat/Steering Column Adjustment Control Module, Driver Seat Lumbar Support, Driver Backrest Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

E335

Lumbar Support Height Adjustment Button

E336

Lumbar Support Forward/Back Adjustment Button

E470

Driver Seat Adjustment Control Head

E663

Driver Seat Switch Module

J136

Memory Seat/Steering Column Adjustment Control Module

T4cu

4-Pin Connector, Black

T4dd

4-Pin Connector, Black

T5ac

5-Pin Connector, Brown

T6q

6-Pin Connector, Black

T10w

10-Pin Connector, Black

T12a

12-Pin Connector, Black

T12b

12-Pin Connector, Black

T26c

26-Pin Connector, Blue

TSF

Driver Seat Backrest Coupling Point

VX2

Driver Seat Lumbar Support

V45

Driver Backrest Adjustment Motor

V125

Driver Seat Lumbar Support Curvature Adjustment Motor

V129

Driver Seat Lumbar Support Height Adjustment Motor

*

Refer to Applicable Seat Adjustment Wiring Diagram

*2

Driver Memory Seat

*3

Component Contained in Passenger Side Area for RHD Vehicles

*4

Component Contained in Driver Side Area for LHD Vehicles
