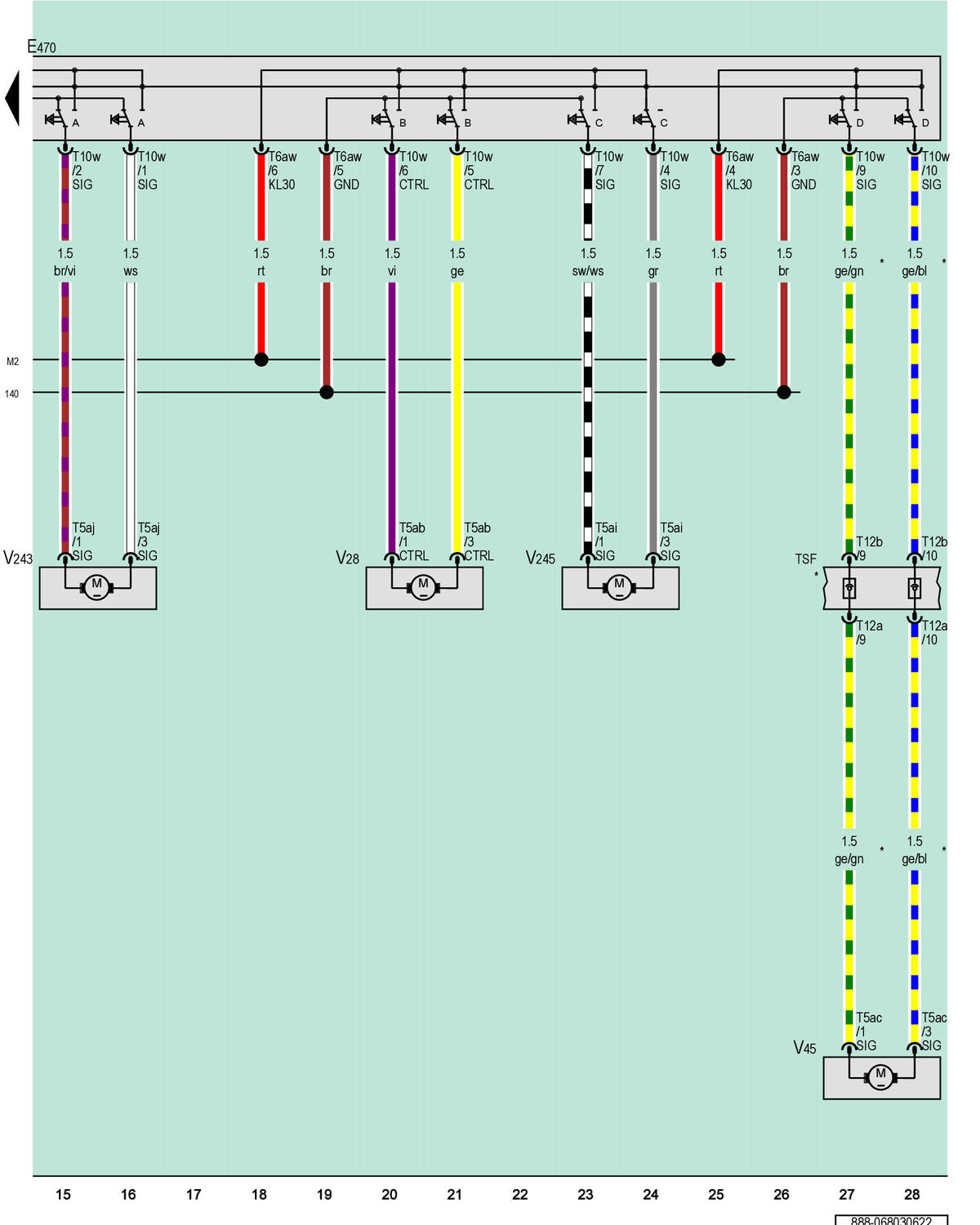

Driver Seat Adjustment Control Head, Driver Seat Forward/Back Adjustment Motor, Driver Backrest Adjustment Motor, Driver Seat Angle Adjustment Motor, Driver Seat Height Adjustment Motor
E470
Driver Seat Adjustment Control Head
T5ab
5-Pin Connector, Brown
T5ac
5-Pin Connector, Brown
T5ai
5-Pin Connector, Brown
T5aj
5-Pin Connector, Brown
T6aw
6-Pin Connector, Black
T10w
10-Pin Connector, Black
T12a
12-Pin Connector, Black
T12b
12-Pin Connector, Black
TSF
Driver Seat Backrest Coupling Point
V28
Driver Seat Forward/Back Adjustment Motor
V45
Driver Backrest Adjustment Motor
V243
Driver Seat Angle Adjustment Motor
V245
Driver Seat Height Adjustment Motor
140
Ground Connection 2 (in Seat Adjustment Wiring Harness)
M2
Positive Connection 2 (30) (in Seat Adjustment Wiring Harness)
*
For Vehicles with Power Driver Seat Adjuster
