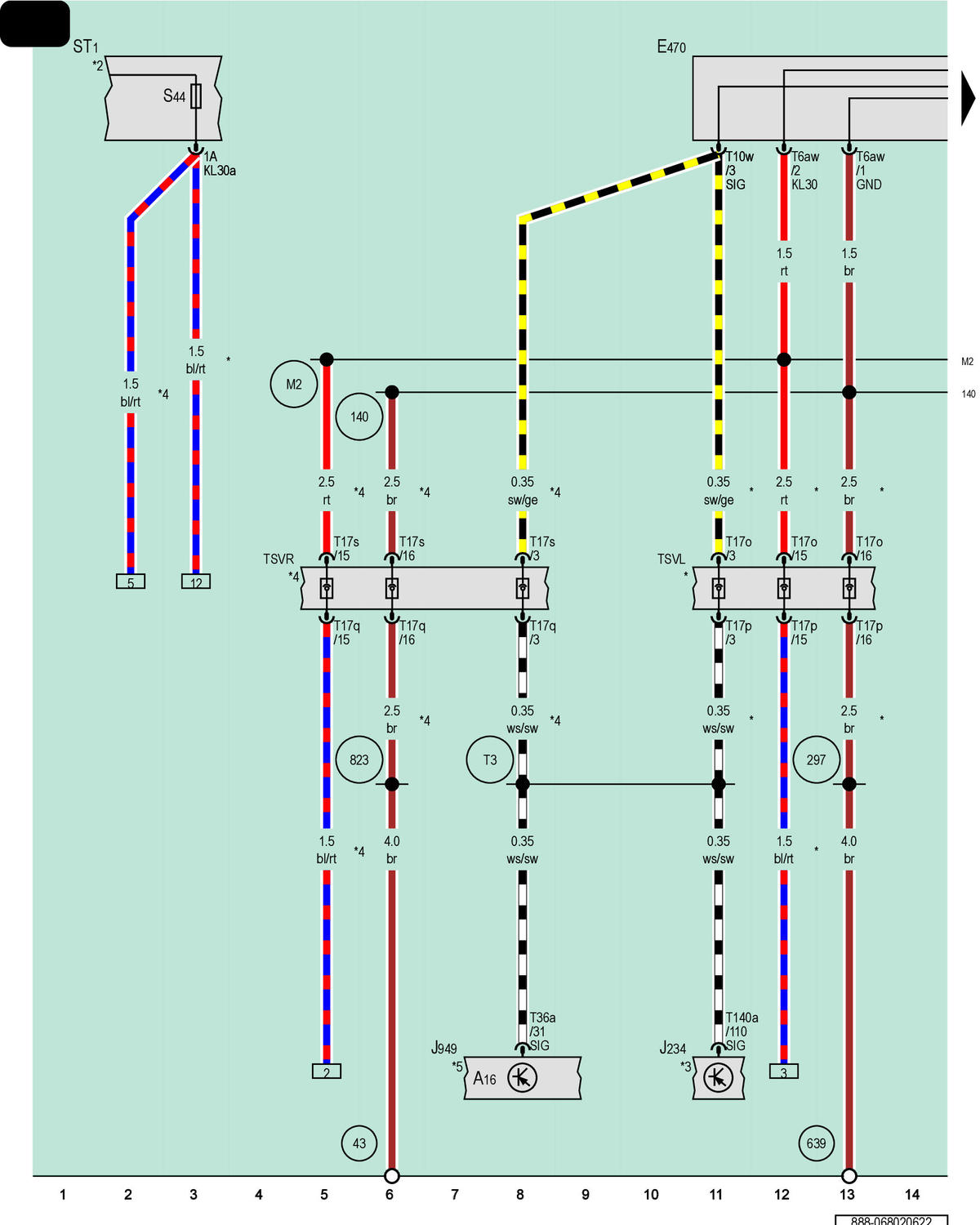

Driver Seat Adjustment Control Head, Airbag Control Module, Control Module For Emergency Call Module And Communication Unit, Fuse Panel 1
A16
Telematics Emergency Battery
E470
Driver Seat Adjustment Control Head
J234
Airbag Control Module
J949
Control Module for Emergency Call Module and Communication Unit
ST1
Fuse Panel 1
S44
Driver Power Seat Adjustment Circuit Breaker 1
T6aw
6-Pin Connector, Black
T10w
10-Pin Connector, Black
T17o
17-Pin Connector, Red
T17p
17-Pin Connector, Red
T17q
17-Pin Connector, Red
T17s
17-Pin Connector, Red
T36a
36-Pin Connector, Black
T140a
140-Pin Connector, Yellow
TSVL
Left Front Seat Coupling Station
TSVR
Right Front Seat Coupling Station
43
Ground Connection on A-Pillar, Lower Right
140
Ground Connection 2 (in Seat Adjustment Wiring Harness)
297
Ground Connection 12 (in Interior Wiring Harness)
639
Ground Connection on Left A-Pillar
823
Ground Connection 16 (in Interior Wiring Harness)
M2
Positive Connection 2 (30) (in Seat Adjustment Wiring Harness)
T3
Connection (in Airbag Wiring Harness)
*
For LHD Vehicles
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
Refer to Applicable Airbag Wiring Diagram
*4
For RHD Vehicles
*5
Refer to Applicable Communication Wiring Diagram
