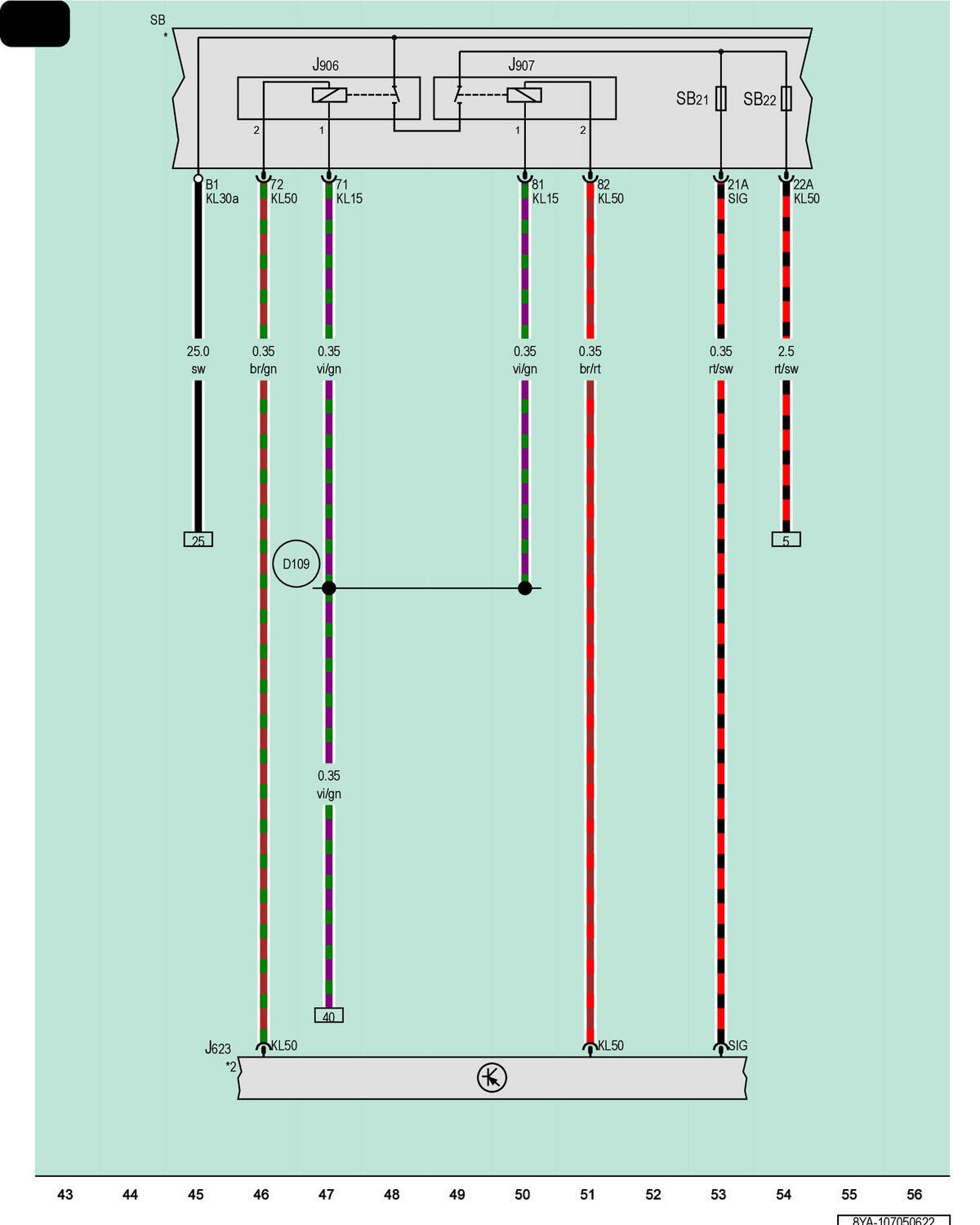

Engine/Motor Control Module, Fuse Panel B

Courtesy of AUDI OF AMERICA, LLC

J623

Engine/Motor Control Module

J906

Starter Relay 1

J907

Starter Relay 2

SB

Fuse Panel B

SB21

Fuse 21 (On Fuse Panel B)

SB22

Fuse 22 (On Fuse Panel B)

D109

Connection 7 (in Engine/Motor Compartment Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*2

Refer to Applicable Engine Wiring Diagram
