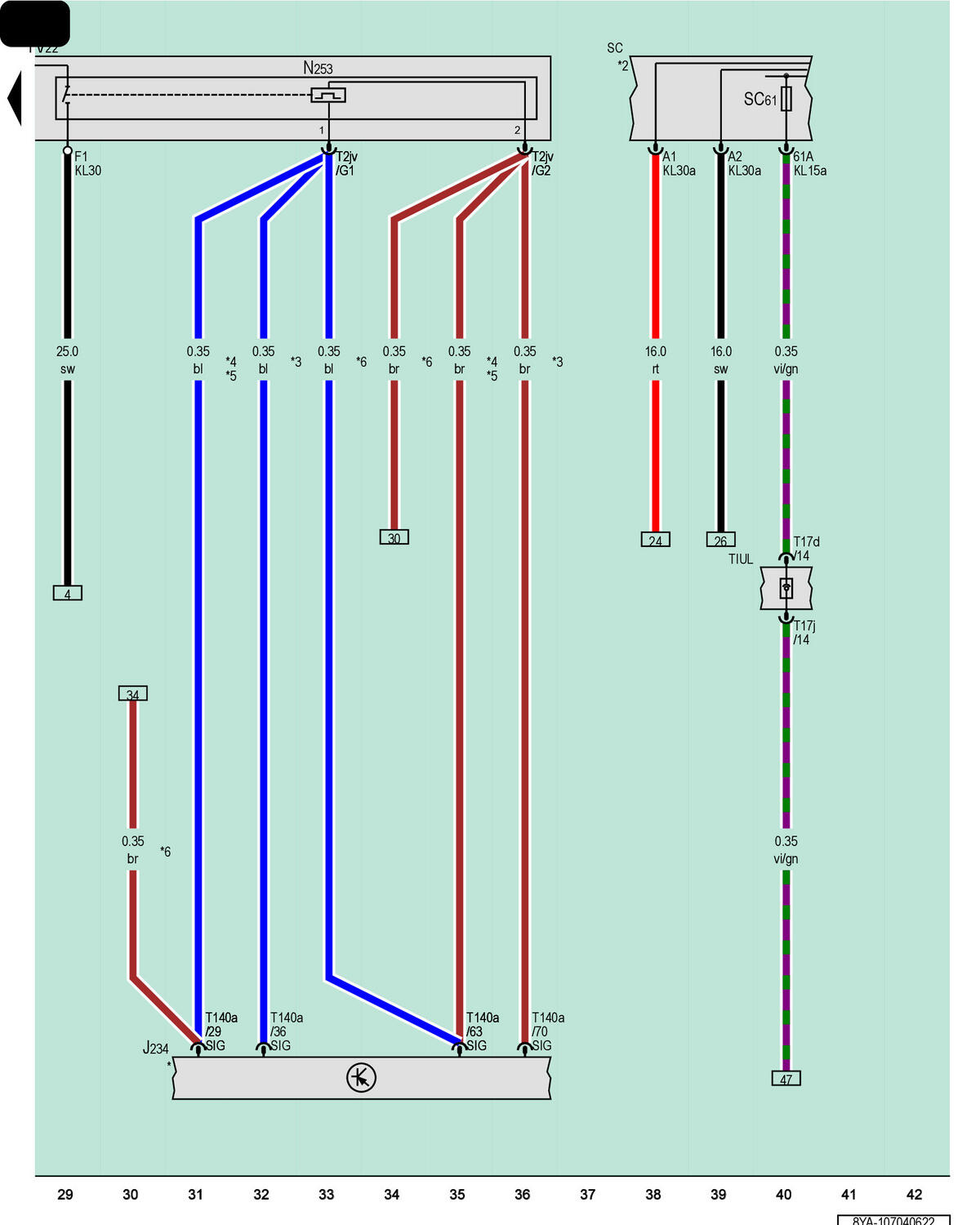

Airbag Control Module, Fuse Panel C, Terminal 30 Wire Junction 2

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

N253

Battery Interrupt Igniter

SC

Fuse Panel C

SC61

Fuse 61 (On Fuse Panel C)

T2jv

2-Pin Connector, Yellow

T17d

17-Pin Connector, Red

T17j

17-Pin Connector, Red

T140a

140-Pin Connector, Yellow

TIUL

Coupling Point in Interior, Bottom Left

TV22

Terminal 30 Wire Junction 2

*

Refer to Applicable Airbag Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*3

Through November 2020

*4

From November 2020

*5

Through November 2021

*6

From November 2021
