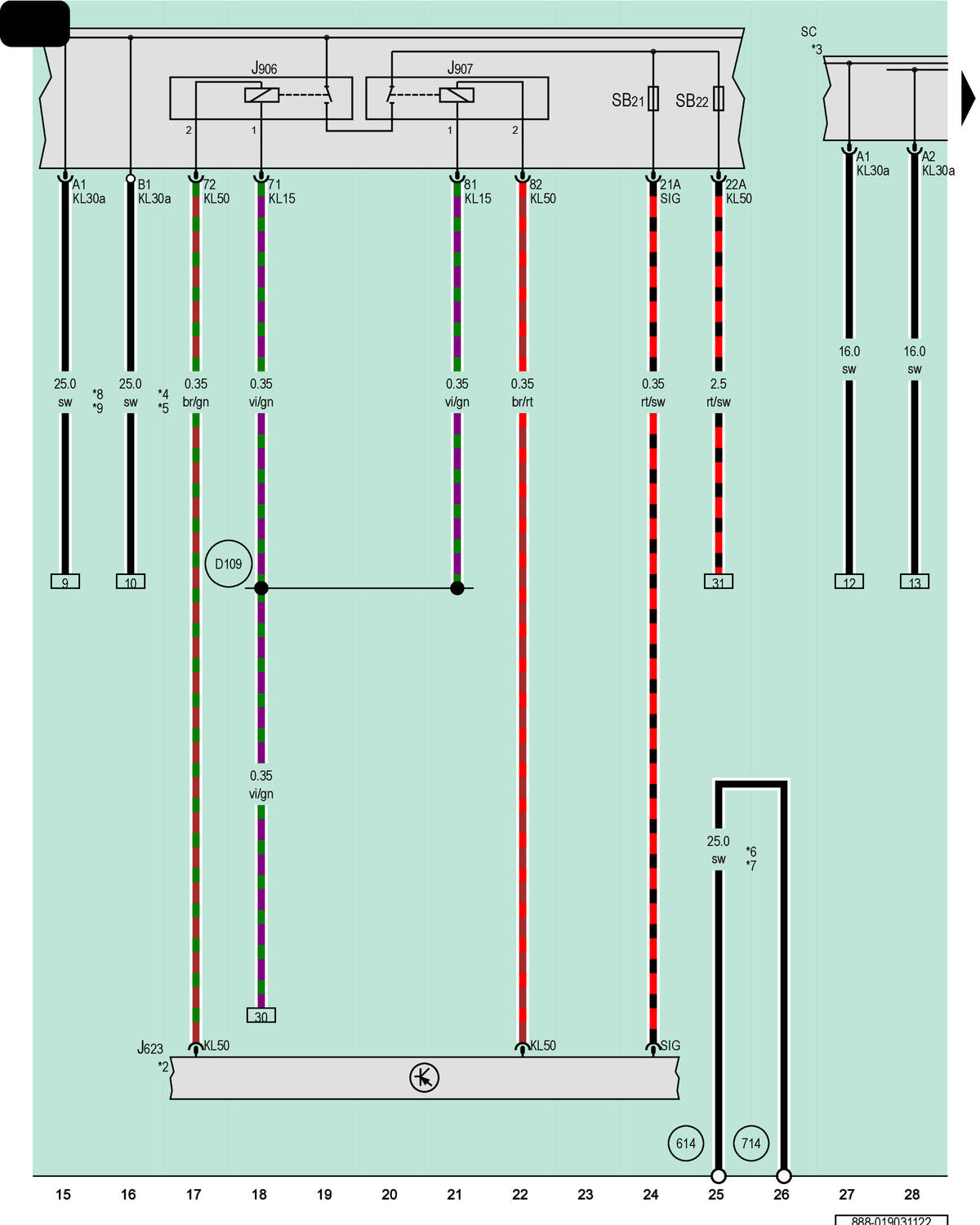

Engine/Motor Control Module, Fuse Panel B, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

J623

Engine/Motor Control Module

J906

Starter Relay 1

J907

Starter Relay 2

SB

Fuse Panel B

SB21

Fuse 21 (On Fuse Panel B)

SB22

Fuse 22 (On Fuse Panel B)

SC

Fuse Panel C

614

Ground Connection 2 in Engine/Motor Compartment, Right

714

Ground Connection on Engine, Right

D109

Connection 7 (in Engine/Motor Compartment Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*2

Refer to Applicable Engine Wiring Diagram

*3

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*4

Through June 2022

*5

From November 2022

*6

Diameter Depends on Equipment

*7

The Color of the Wires Depends on Vehicle Equipment

*8

From June 2022

*9

Through November 2022
