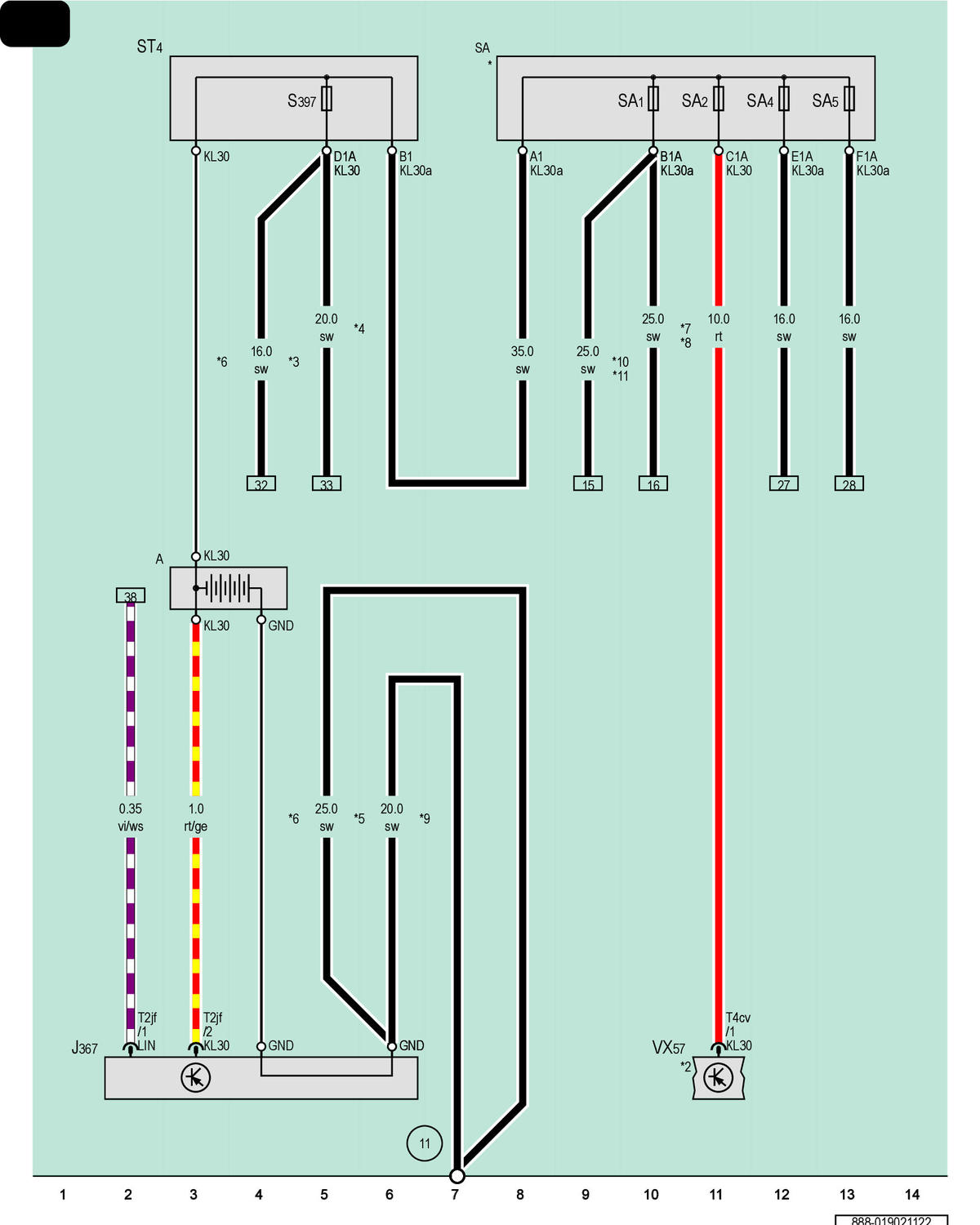

Battery, Battery Monitoring Control Module, Fuse Panel A, Fuse Panel 4, Radiator Fan

Courtesy of AUDI OF AMERICA, LLC

A

Battery

J367

Battery Monitoring Control Module

SA

Fuse Panel A

SA1

Fuse 1 (On Fuse Panel A)

SA2

Fuse 2 (On Fuse Panel A)

ST4

Fuse Panel 4

SA4

Fuse 4 (On Fuse Panel A)

SA5

Fuse 5 (On Fuse Panel A)

S397

Fuse Panel 4 Fuse 1

T2jf

2-Pin Connector, Black

T4cv

4-Pin Connector, Black

VX57

Radiator Fan

11

Ground Connection in Battery Compartment

*

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*2

Refer to Applicable Radiator Fan Wiring Diagram

*3

For Vehicles with Generator (140 A)

*4

For Vehicles with 180-A Generator

*5

For Vehicles Without Start/Stop System

*6

On the Battery

*7

Through June 2022

*8

From November 2022

*9

For Vehicles with Start/Stop System

*10

From June 2022

*11

Through November 2022
