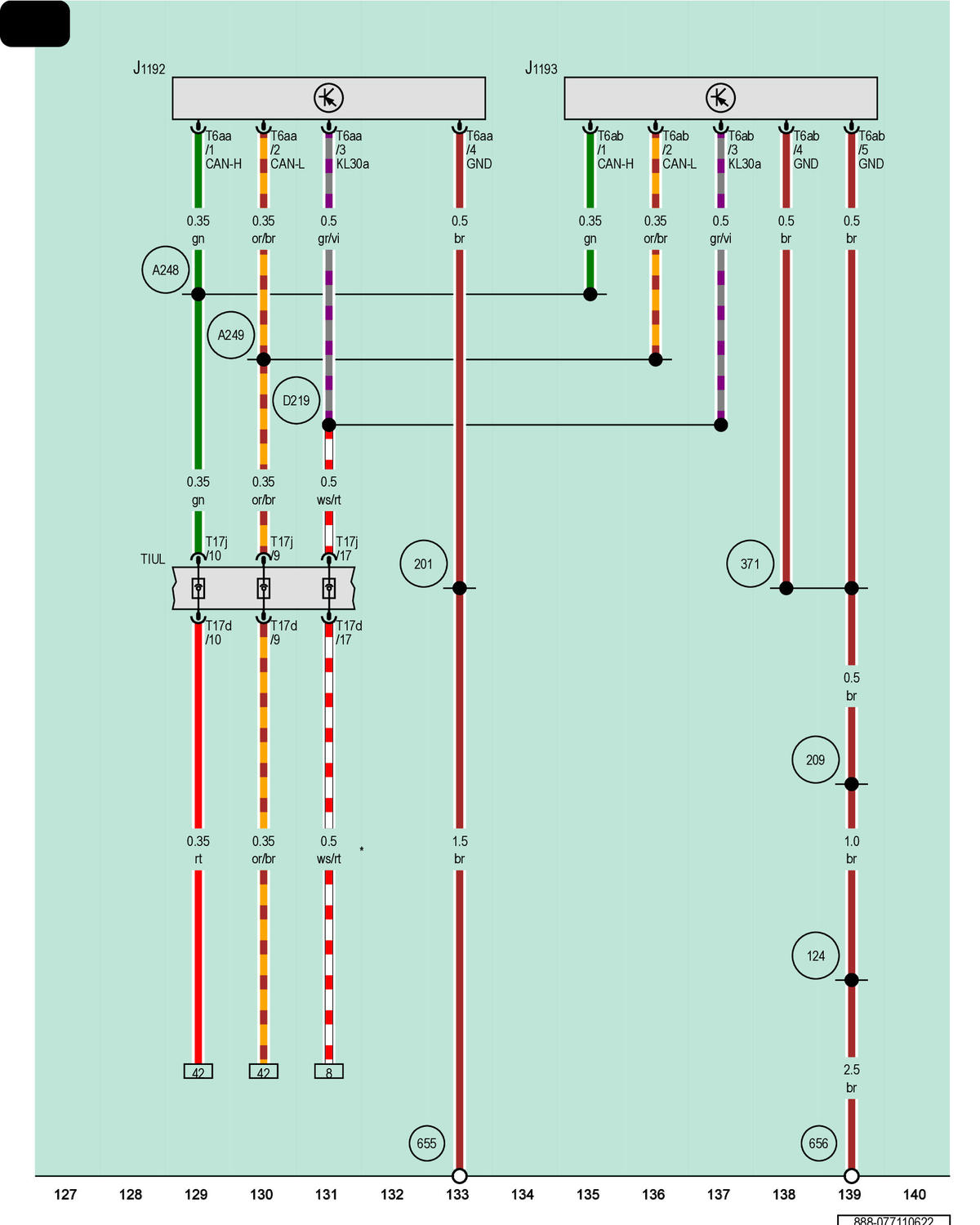

Burglary Protection Control Module 2, Burglary Protection Control Module 3
J1192
Burglary Protection Control Module 2
J1193
Burglary Protection Control Module 3
T6aa
6-Pin Connector, Black
T6ab
6-Pin Connector, Black
T17d
17-Pin Connector, Red
T17j
17-Pin Connector, Red
TIUL
Coupling Point in Interior, Bottom Left
124
Ground Connection (in Right Engine/Motor Compartment Wiring Harness)
201
Ground Connection 5 (in Engine/Motor Compartment Wiring Harness)
209
Ground Connection 6 (in Engine/Motor Compartment Wiring Harness)
371
Ground Connection 6 (in Main Wiring Harness)
655
Ground Connection on Left Headlamp
656
Ground Connection on Right Headlamp
A248
CAN Bus High Connection 2 (in Engine/Motor Compartment Wiring Harness)
A249
CAN Bus Low Connection 2 (in Engine/Motor Compartment Wiring Harness)
D219
Positive Connection 7 (30a) (in Engine/Motor Compartment Wiring Harness)
*
Diameter Depends on Equipment
