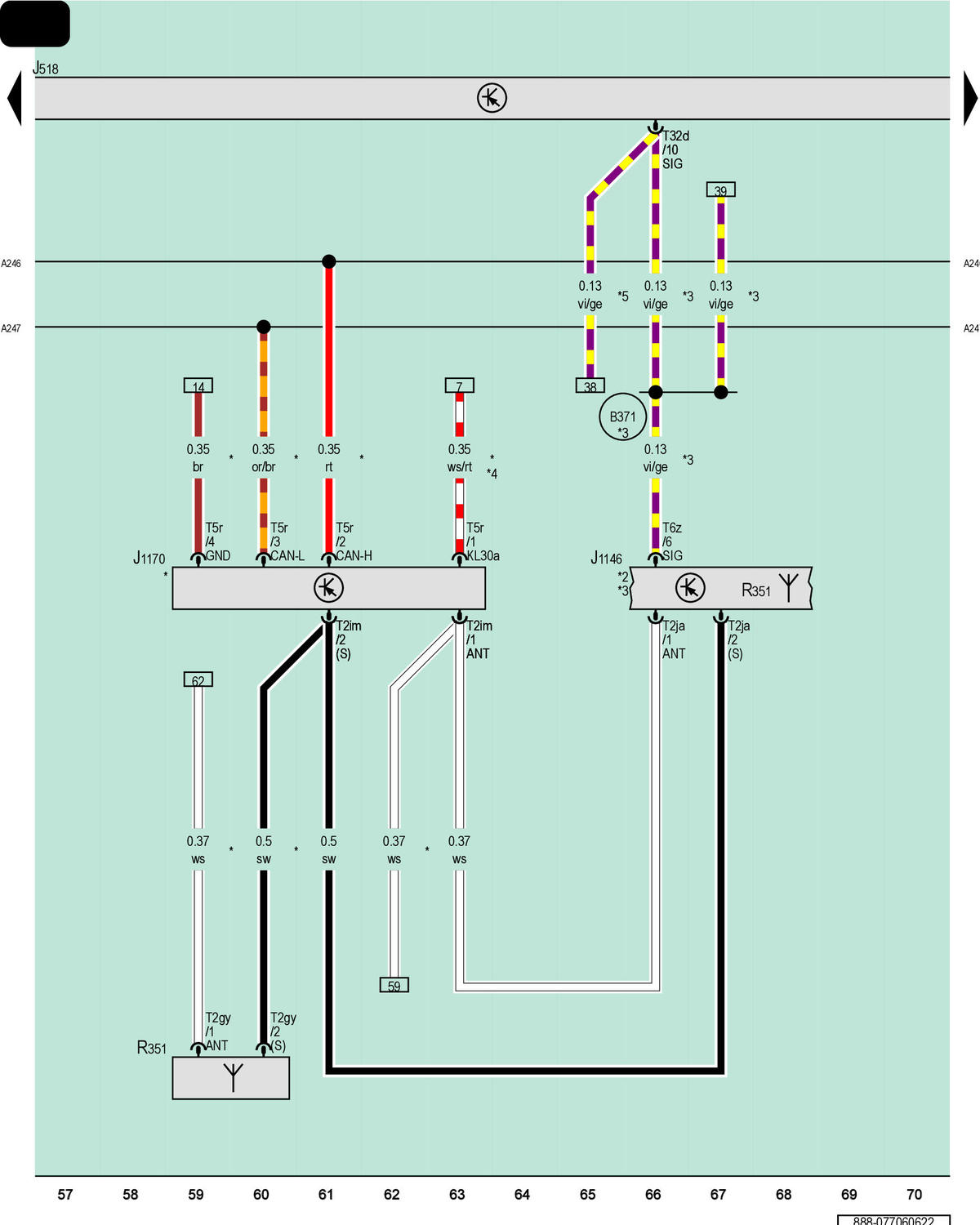

Access/Start Authorization Control Module, Mobile Device Charger 1, Near Field Communication Control Module 2, Near Field Communication Antenna 2
J518
Access/Start Authorization Control Module
J1146
Mobile Device Charger 1
J1170
Near Field Communication Control Module 2
R351
Near Field Communication Antenna 2
T2gy
2-Pin Connector, Black
T2im
2-Pin Connector, Black
T2ja
2-Pin Connector, Black
T5r
5-Pin Connector, Black
T6z
6-Pin Connector, Black
T32d
32-Pin Connector, Gray
A246
CAN Bus High Connection 1 (in Engine/Motor Compartment Wiring Harness)
A247
CAN Bus Low Connection 1 (in Engine/Motor Compartment Wiring Harness)
B371
Antenna Connection 1 (in Main Wiring Harness)
*
For Vehicles with Near Field Communication
*2
Refer to the Applicable Cell Phone System Wiring Diagram
*3
For Vehicles with Wireless Cell Phone Charger
*4
The Color of the Wires Depends on Vehicle Equipment
*5
For Vehicles Without Wireless Cell Phone Charger
