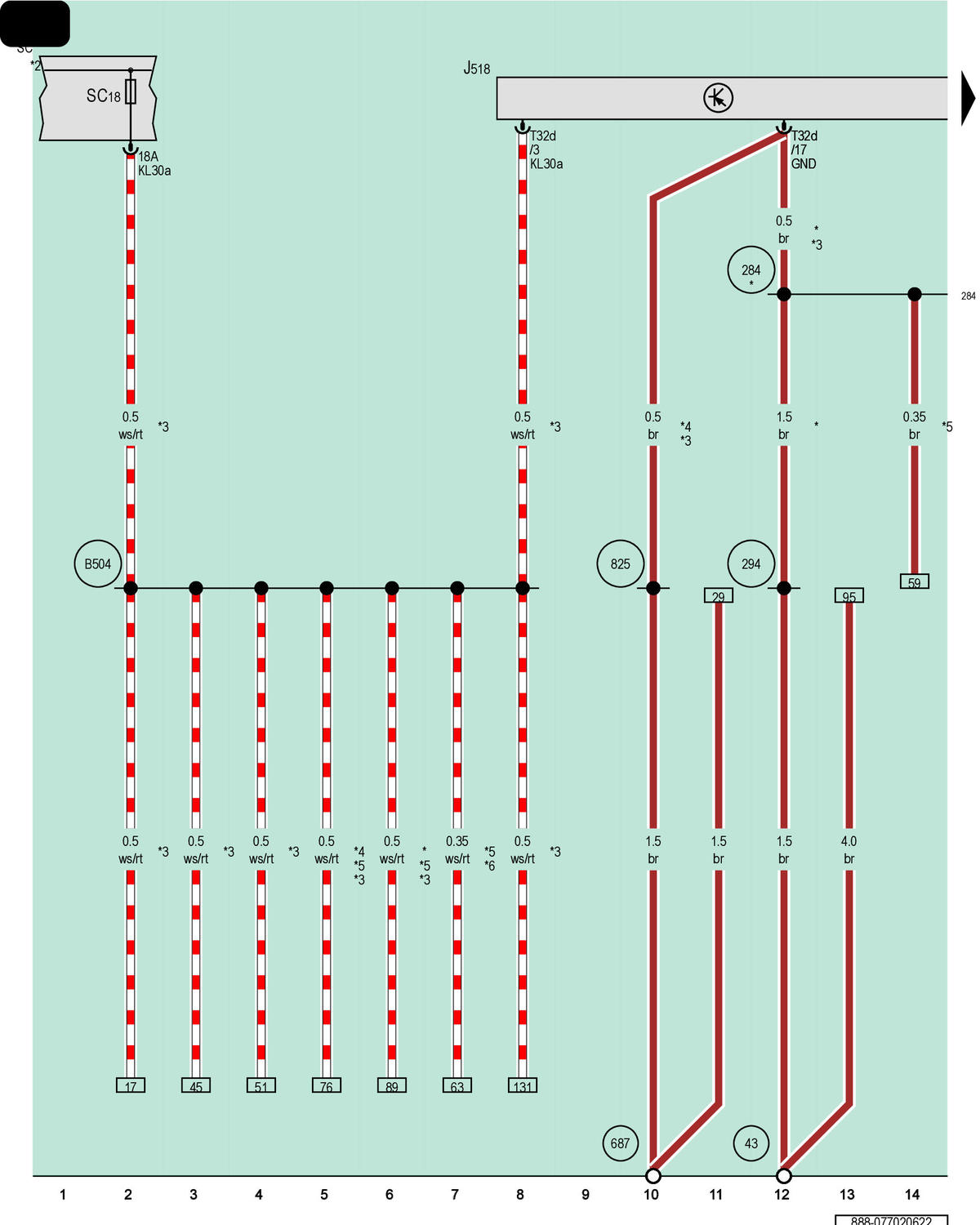

Access/Start Authorization Control Module, Fuse Panel C
J518
Access/Start Authorization Control Module
SC
Fuse Panel C
SC18
Fuse 18 (On Fuse Panel C)
T32d
32-Pin Connector, Gray
43
Ground Connection on A-Pillar, Lower Right
284
Ground Connection 6 (in Interior Wiring Harness)
294
Ground Connection 9 (in Interior Wiring Harness)
687
Ground Connection 1 on Center Tunnel
825
Ground Connection 18 (in Interior Wiring Harness)
B504
Positive Connection 8 (30a) (in Interior Wiring Harness)
*
For RHD Vehicles
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
Diameter Depends on Equipment
*4
For LHD Vehicles
*5
For Vehicles with Near Field Communication
*6
The Color of the Wires Depends on Vehicle Equipment
