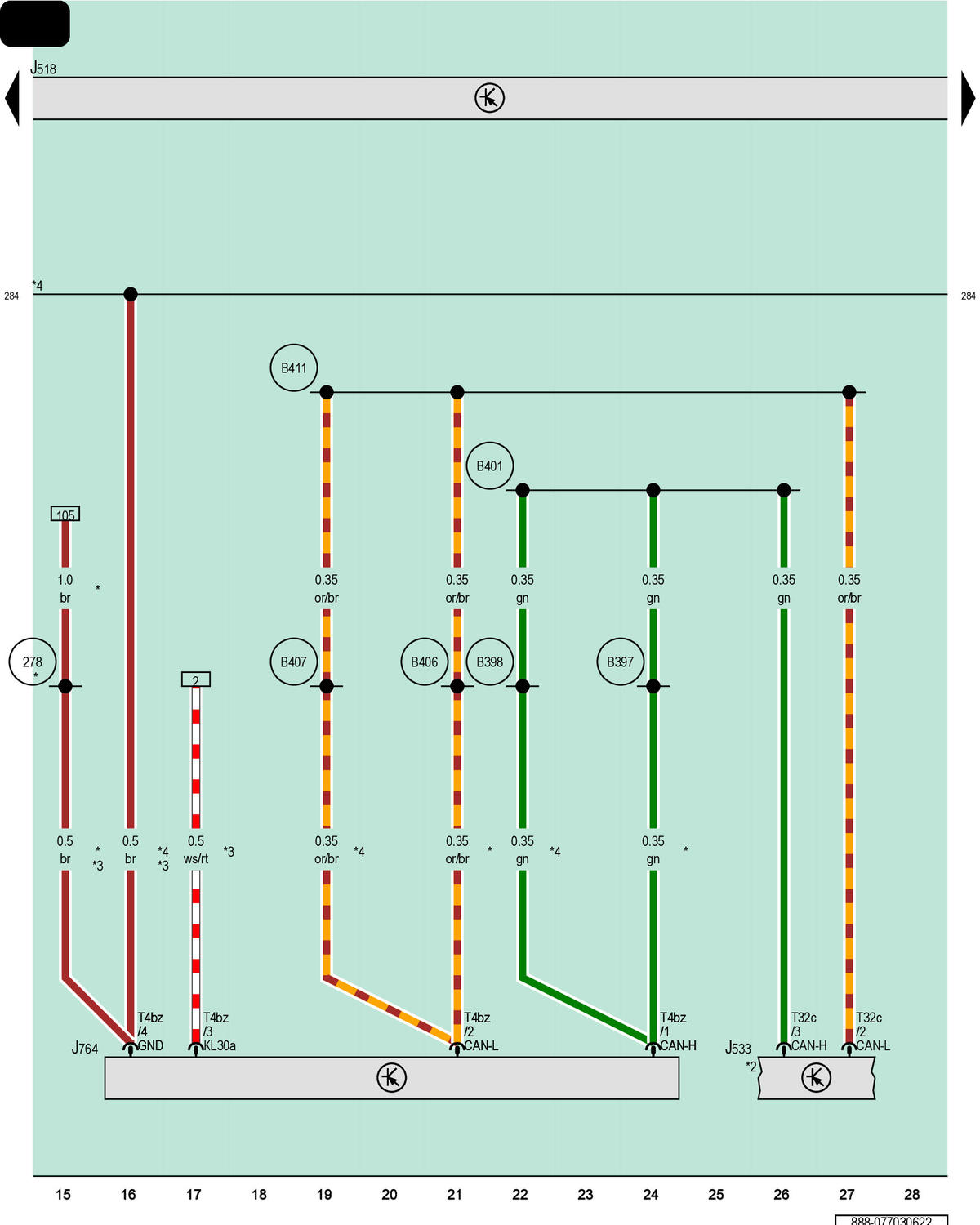

Access/Start Authorization Control Module, Data Bus On Board Diagnostic Interface, Electronic Steering Column Lock Control Module
J518
Access/Start Authorization Control Module
J533
Data Bus on Board Diagnostic Interface
J764
Electronic Steering Column Lock Control Module
T4bz
4-Pin Connector, Black
T32c
32-Pin Connector, Black
278
Ground Connection 4 (in Interior Wiring Harness)
284
Ground Connection 6 (in Interior Wiring Harness)
B397
Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)
B398
Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B401
Comfort System CAN Bus High Connection 5 (in Main Wiring Harness)
B406
Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)
B407
Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B411
Comfort System CAN Bus Low Connection 6 (in Main Wiring Harness)
*
For LHD Vehicles
*2
Refer to Applicable Wiring Diagram for Data Bus Networking
*3
Diameter Depends on Equipment
*4
For RHD Vehicles
