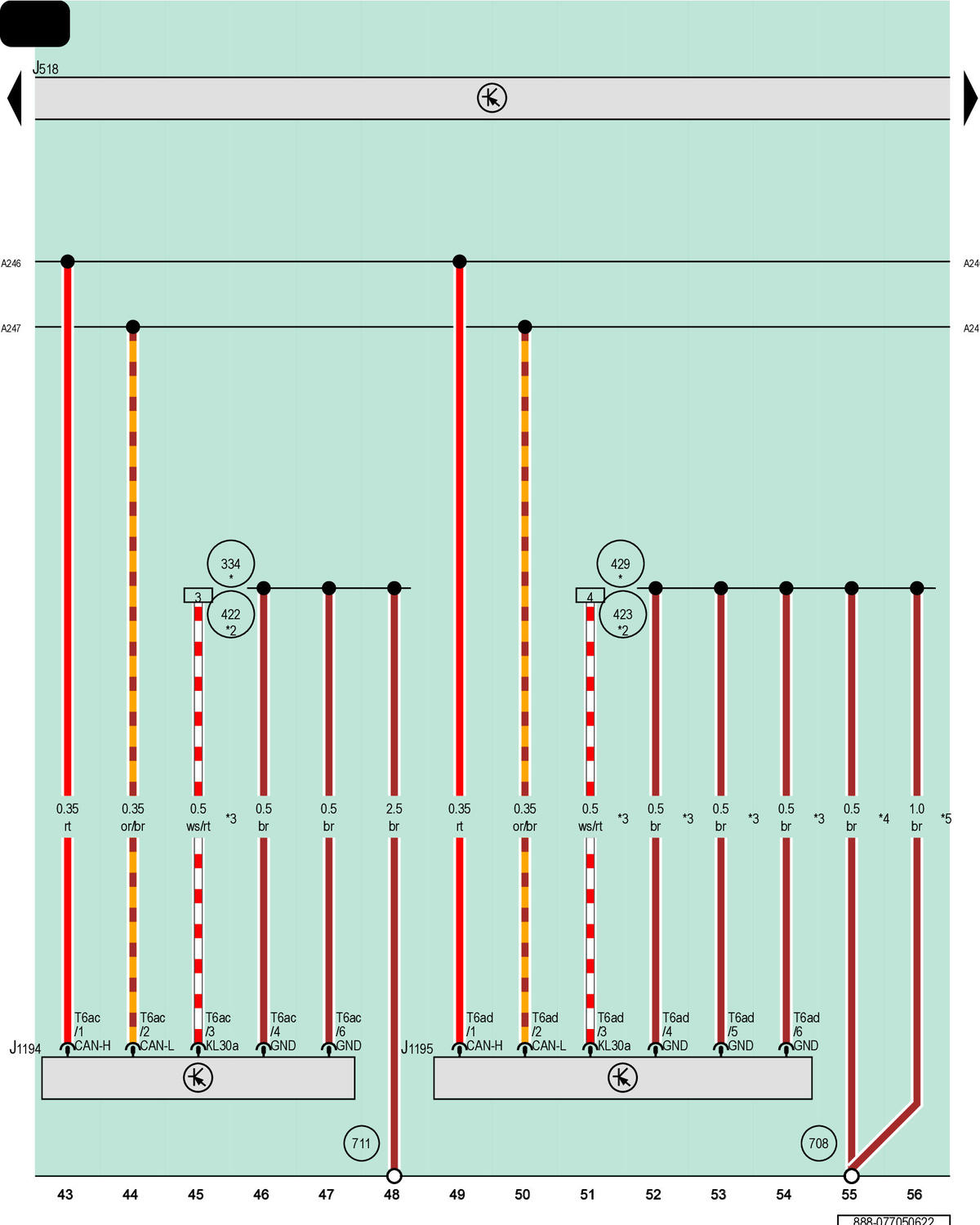

Access/Start Authorization Control Module, Burglary Protection Control Module 4, Burglary Protection Control Module 5
J518
Access/Start Authorization Control Module
J1194
Burglary Protection Control Module 4
J1195
Burglary Protection Control Module 5
T6ac
6-Pin Connector, Black
T6ad
6-Pin Connector, Black
334
Ground Connection 6 (in Rear Wiring Harness)
422
Ground Connection 1 (in Left Rear Wiring Harness)
423
Ground Connection 1 (in Right Rear Wiring Harness)
429
Ground Connection 4 (in Right Rear Wiring Harness)
708
Ground Connection 2 on Right Rear Chassis Side Member
711
Ground Connection 3 on Left Rear Chassis Side Member
A246
CAN Bus High Connection 1 (in Engine/Motor Compartment Wiring Harness)
A247
CAN Bus Low Connection 1 (in Engine/Motor Compartment Wiring Harness)
*
Sportback
*2
Sedan
*3
Diameter Depends on Equipment
*4
Through November 2021
*5
From November 2021
