Tail Pipe Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING, RS3 .

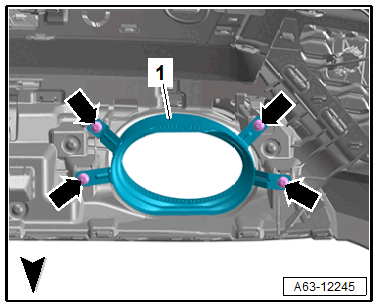

-- Remove the bolts -arrows-.

GWWA63-12245Courtesy of AUDI OF AMERICA, LLC

-- Remove the tail pipe trim -1- inward.
