Wind Deflector, Removing And Installing, A6: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the glass panel toward the rear.

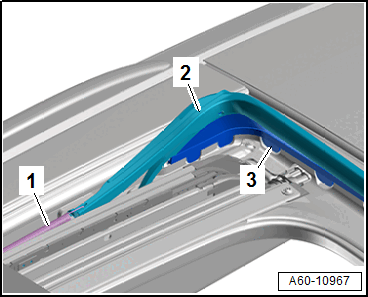

-- Disengage the wind deflector springs -1- on the left and right side.
-- Release the catches -3- on the wind deflector net -2- starting at the side on the sliding sunroof frame.

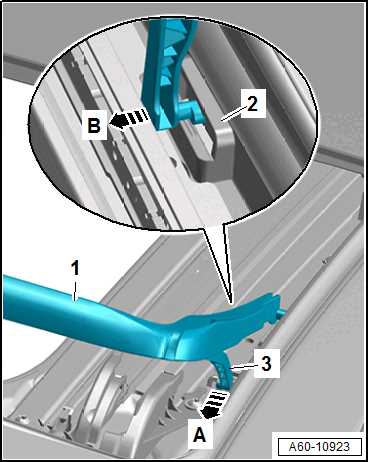

-- Slide the left and right linkage -3- for the net forward out of the guide in direction of -arrow A-.
-- Tilt the wind deflector linkage -1- vertically upward and disengage from the guide -2- in direction of -arrow B-.
