Rear Sunroof Control Module -J392-, REMOVING AND INSTALLING, A6 AVANT: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the sunroof shade. Refer to REAR SUNROOF SHADE, REMOVING AND INSTALLING, A6 AVANT .

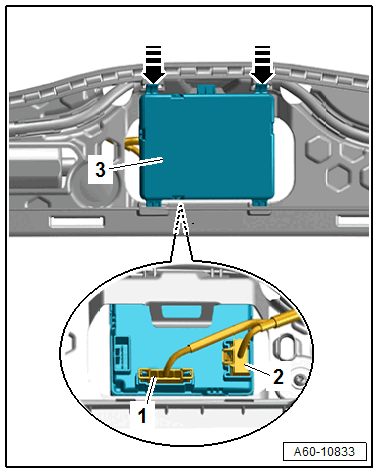

-- Disconnect the connectors -1 and 2-.
-- Release the retainers in direction of -arrows- and pivot the control module -3- out of the bracket.
