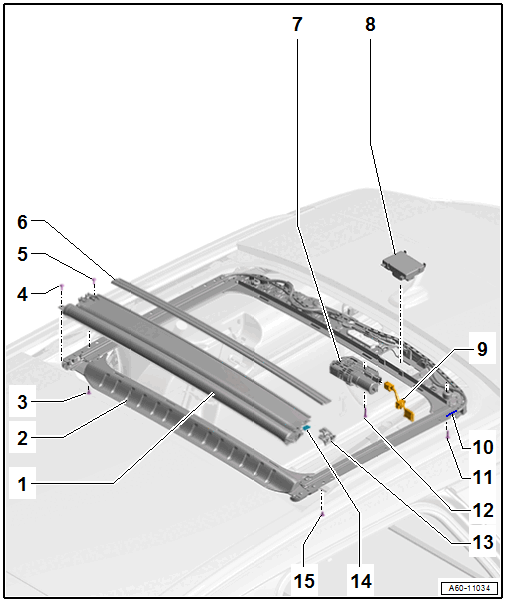

Overview - Sunroof Shade, Rear, A6 AVANT
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Sunroof Shade
- Removing and Installing. Refer to REAR SUNROOF SHADE, REMOVING AND INSTALLING, A6 AVANT .
- Perform the adaptation after installing. Refer to Sunroof Shade Motor 2 -V583-, PROGRAMMING .
- Sunroof Shade Frame
- Removing and Installing. Refer to REAR SUNROOF SHADE, REMOVING AND INSTALLING, A6 AVANT .
- Bolt
- 5 Nm
- Always replace after removing
- Self-locking
- Quantity: 3
- Bolt
- 3 Nm
- Always replace after removing
- Thread cutting
- Position and install by hand
- Quantity: 2
- Bolt
- 3 Nm
- Always replace after removing
- Thread cutting
- Position and install by hand
- Quantity: 2
- Bow
For sunroof shade
- Sunroof Shade Motor 2 -V583-
- Removing and Installing. Refer to Sunroof Shade Motor 2 -V583-, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Sunroof Shade Motor 2 -V583-, PROGRAMMING .
- Rear Sunroof Control Module -J392-
- Removing and Installing. Refer to Rear Sunroof Control Module -J392-, REMOVING AND INSTALLING .
- Wiring Harness
- Cable
- For sunroof shade
- Removing and Installing. Refer to REAR SUNROOF SHADE CABLES, REMOVING AND INSTALLING, A6 AVANT .
- Perform the adaptation after installing. Refer to Sunroof Shade Motor 2 -V583-, PROGRAMMING .
- Bolt
- 5 Nm
- Always replace after removing
- Self-locking
- Quantity: 3
- Bolt
- 3 Nm
- Always replace after removing
- Self-locking
- Quantity: 2
- Driver
- For sunroof shade
- Removing and Installing. Refer to REAR SUNROOF SHADE CABLES, REMOVING AND INSTALLING, A6 AVANT .
- Slider
- On sunroof shade
- Connected to the driver
- Bolt
- 5 Nm
- Always replace after removing
- Self-locking
- Quantity: 3
