Tank Switch-Off Valve -N288-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the right rear wheel housing liner. Refer to OVERVIEW - REAR WHEEL HOUSING LINER .

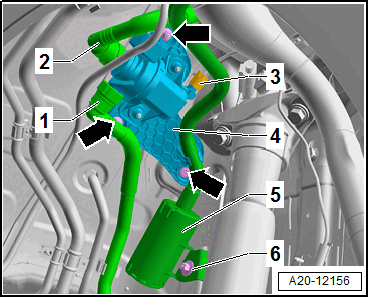

-- Release and disconnect the connector -3-.
-- Disconnect the breather lines -1 and 2-. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
-- Remove the bolt -6- and the filter with the breather line -5- on the bracket -4-.
-- Remove the nuts and bolts -arrows-.
-- Remove the Tank Switch-Off Valve -N288- with the bracket -4-.

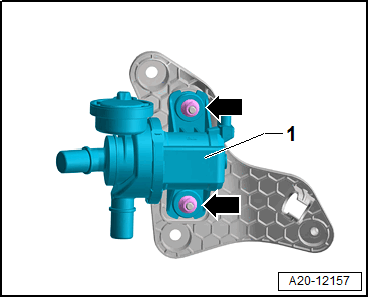

-- Remove the nuts -arrows- and remove the Tank Switch-Off Valve -N288- -item 1- from the bracket.
