Fuel Tank, Draining, TFSI Vehicles

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Fuel Extractor:VAS5190A

Fig 1: Fuel Extraction Device VAS5190A
Courtesy of AUDI OF AMERICA, LLC
Adapter:VAS5190/4 , not illustrated
A7 Sportback: emergency refueling funnel from the vehicle tool kit

Procedure

-- Observe the safety instructions. Refer to SAFETY PRECAUTIONS .

-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Move the front seats all the way forward into the highest position.

-- Switch off the ignition.

-- Attach the Fuel Extraction - Adapter 2: VAS5190/4 -2- to the suction hose -1- on the Fuel Extractor :VAS5190A .

Courtesy of AUDI OF AMERICA, LLC

-- Open the fuel filler door.

-- A6: remove the fuel filler neck cap -arrow-.

Fig 2: The Fuel Filler Cap

Courtesy of AUDI OF AMERICA, LLC

-- A7 Sportback: insert the emergency refueling funnel -1- from the vehicle tool kit all the way into the filler neck in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bench seat. Refer to REAR BENCH SEAT, REMOVING AND INSTALLING .

-- Fold the insulation mat over the sealing flange cover to the side. Separate it at the perforations if necessary to do so.

Fig 3: Sealing Flange Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the sealing flange cover -1-.

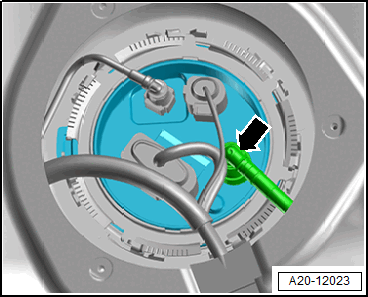

-- Disconnect the fuel line -arrow- from the sealing flange. Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk of the fuel tank exploding due to electrostatic discharge.

Severe injuries and burns are possible.

- Attach the fuel siphoning device ground cable to a bare area on the body.

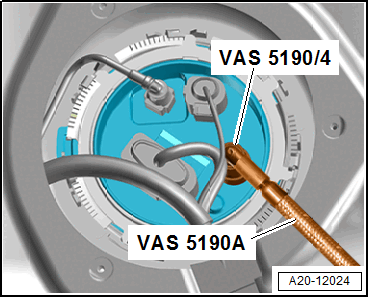

-- Connect the suction hose with the Fuel Extraction - Adapter 2:VAS5190/4 to the connection on the sealing flange.

Courtesy of AUDI OF AMERICA, LLC

-- Extract the fuel using the Fuel Extractor Unit:VAS5190A .

The Remaining Steps to be Performed will Depend on the Issue.

-- Remove the fuel delivery unit. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .

-- Remove the Fuel Level Sensor -G-. Refer to Fuel Level Sensor -G-, REMOVING AND INSTALLING .

-- Remove the fuel tank. Refer to FUEL TANK, REMOVING AND INSTALLING .
