Closure Cap, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

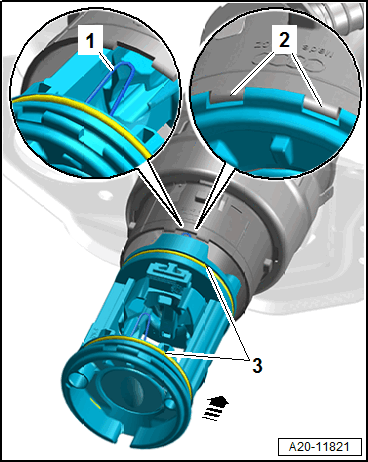

Install in the reverse order of removal while noting the following:
-- Coat the seals -3- with some engine oil.
-- Insert the cap in the fuel filler neck, press the cap spring -1- down, and press the cap into the fuel filler neck as far as the stop in direction of -arrow-.
-- When installed correctly, the pins on the closure cap will engage in the fuel filler neck.
- The pins -2- must lie in the grooves on the cap.
