Fuel Tank Leak Detection Module -GX36-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Observe the safety instructions. Refer to SAFETY PRECAUTIONS .

-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Remove the right rear wheel housing liner. Refer to OVERVIEW - REAR WHEEL HOUSING LINER .

-- Remove the fuel filler door unit. Refer to appropriate Service Information .

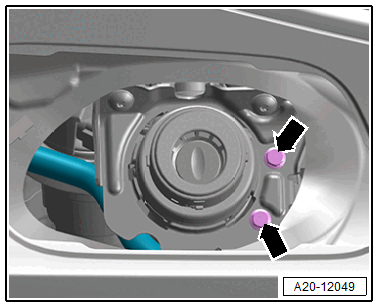

-- Remove the fuel filler neck bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

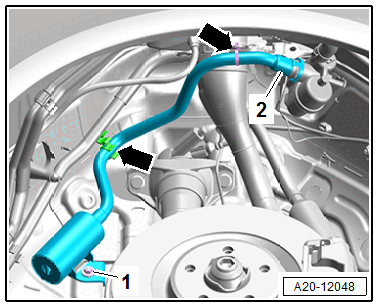

-- Remove the nut -1- and disengage the filter.

Courtesy of AUDI OF AMERICA, LLC

-- Detach the vent line from the brackets -arrows-.

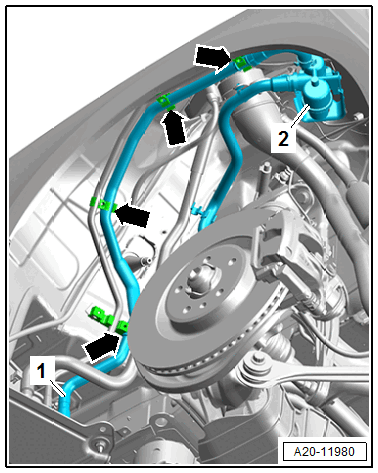

-- Disconnect the bleeder line -1- from the EVAP canister. Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

Courtesy of AUDI OF AMERICA, LLC

-- Detach the breather line from the brackets -arrows-.

-- Disengage the Fuel Tank Leak Detection Module -GX36- -2- at the fuel filler neck.

-- Release the connector safety catch and disconnect the connector.

-- Remove the Fuel Tank Leak Detection Module -GX36-.
