EVAP Canister, Removing And Installing: Removing

-- Observe the safety instructions. Refer to SAFETY PRECAUTIONS .

-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Remove the right rear wheel housing liner. Refer to OVERVIEW - REAR WHEEL HOUSING LINER .

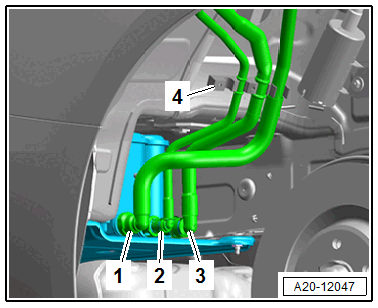

Vehicles Without Tank leak Diagnosis:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the vent and bleeder lines -1, 2 and 3-. Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

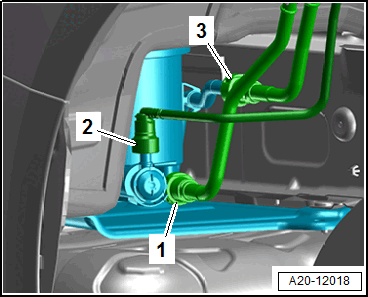

Vehicles with Tank Leak Diagnosis or High-Voltage System:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the vent and bleeder lines -1, 2 and 3-. Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

-- Disengage the vent and bleeder lines from the bracket -4- and move to the side.

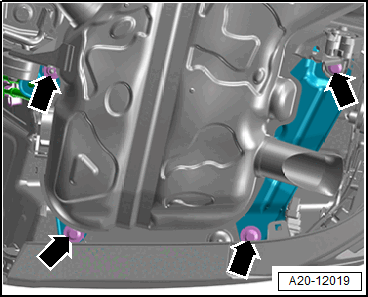

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts/nuts -arrows- and remove the bracket with EVAP canister forward.

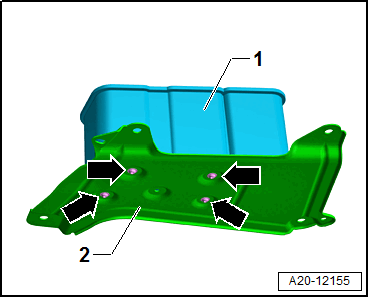

Remove the EVAP Canister from the Bracket:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the EVAP canister -1- from the bracket -2- (Shown on an EVAP canister for vehicles with tank leak diagnosis.)
