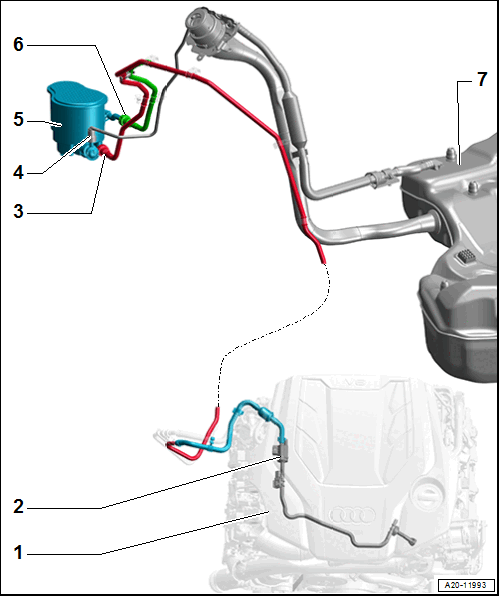

Connection Diagram - EVAP System, Vehicles Without Tank Leak Diagnosis
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- The connection diagram applies to TFSI vehicles.
- The lines on the vehicle are not colored.
- Engine
- EVAP Canister Purge Regulator Valve 1 -N80-
- Bleeder Line
- To the EVAP Canister Purge Regulator Valve 1 -N80-
- Bleeder Line
- From the fuel tank
- EVAP Canister
- Vent Line
- Vents out to the right rear under the wheel housing liner
- Fuel Tank
