Overview - Lower Rear Lid Trim Panel, A6 AVANT

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

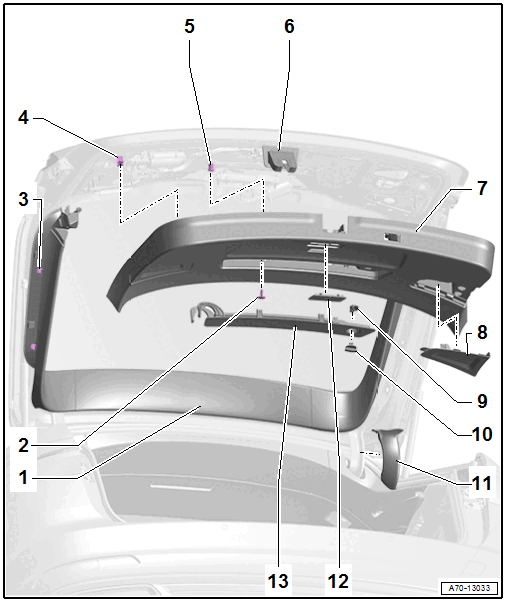

Fig 1: Exploded View Of Rear Lid Trim Panel, Avant

Courtesy of AUDI OF AMERICA, LLC

Upper Trim Panel
- Refer to Rear Lid Lower Trim Panel, Removing and Installing .
Bolt
- Installed depending on vehicle equipment
- Quantity: 2
- 2 Nm
Clip
- Remove any clips still in the rear lid mounting points using the Omega Clip Tool :T40280 and insert into the trim panel to install
- Replace damaged or deformed clips
- Quantity: 8
Clip
- Remove any clips still in the rear lid mounting points using the Omega Clip Tool :T40280 and insert into the trim panel to install
- Replace damaged or deformed clips
- Quantity: 12
Expanding Nut
- Quantity: 2
Rear Lid Latch Trim Panel
- Refer to Rear Lid Lower Trim Panel, Removing and Installing .
Lower Trim Panel
- Refer to Rear Lid Lower Trim Panel, Removing and Installing .
Tail Lamp Cover
- Quantity: 2
Lock Bolt
- Clip into the knob
Knob
- For the emergency triangle cover locking mechanism
Rear Lid Hinge Trim Panel
- Clip onto the rear lid hinge
- Quantity: 2
Emergency Release Cover
- Unclip using the Trim Removal Wedge :3409
Emergency Triangle Cover
