Speaker Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Outer Speaker Trim

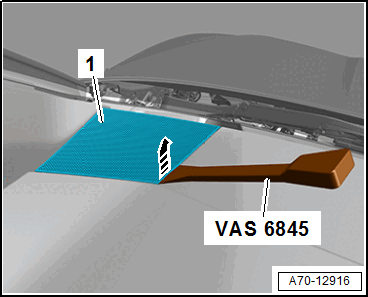

-- Disengage the trim -1- using scraper no. 2 from the Scraper Set :VAS 6845 -arrow-, for this, push the scraper approximately 2 mm into the gap under the trim -1-.

Fig 1: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the remaining trim clips -1- and remove toward the rear.

Continuation for all vehicles

Center Speaker Trim

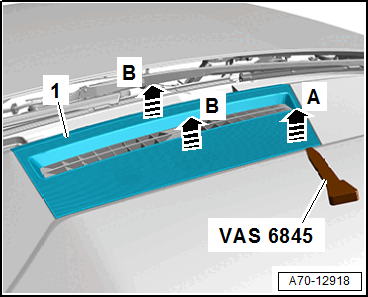

-- Disengage the trim -1- using scraper no. 1 from the Scraper Set :VAS 6845 -arrow A-, for this, push the scraper approximately 2 mm into the gap under the trim -1-.

Fig 2: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the remaining tabs for the trim -1- along the seam.

-- For this, push the scraper through below the trim -1- toward the front and disengage the front retainers -arrows B-, -arrows C-.

Continuation for all vehicles
