Driver/Front Passenger Thorax Airbag Crash Sensor G179/G180, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front door trim panel. Refer to Front Door Trim Panel, Removing and Installing .
CAUTION:
Pyrotechnical components can deploy unintentionally.
Risk of injury.
- Discharge the static electricity: quickly touch the door striker.

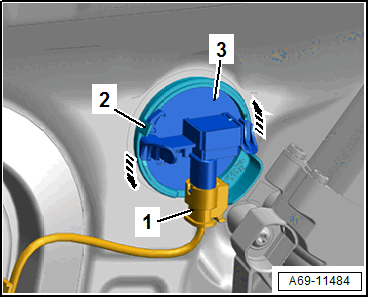

-- Disconnect the connector -1- by pulling out the connector lock and pressing it down.
-- Release the catch -2- and crash sensor -3- approximately 45° counter-clockwise -arrows-.
-- Disengage the thorax airbag crash sensor from the door and remove.
