Windshield Washer Pump, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

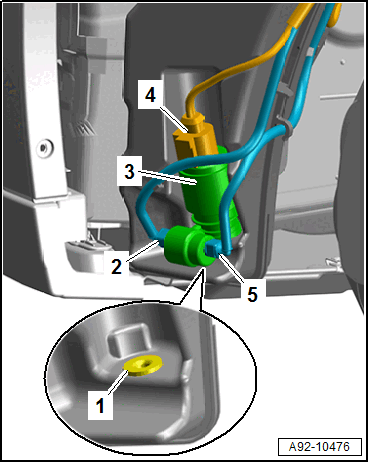

-- Remove the washer fluid reservoir so far that the Windshield Washer Pump -V5- becomes accessible. Refer to Washer Fluid Reservoir, Removing and Installing .
-- Disconnect the connector -4-.
-- Place a drip tray under the washer fluid reservoir.
-- Release the clip and remove the washer fluid hoses -5-.
-- If a washer fluid hose -2- is equipped, release the clamp and remove the washer fluid hose -2-.
-- Remove the washer fluid pump -3- upward.
