Windshield Washer Pump Control Module J1100, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
If the Washer Pump Control Module -J1100- is replaced, perform the test plan for replacing the control module.
-- Perform the "control module, replacing" function using the Vehicle Diagnostic Tool. Refer to Diagnostic Entries .
Continuation
-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .
-- Remove the cover for the fresh air intake. Refer to appropriate Service Information .

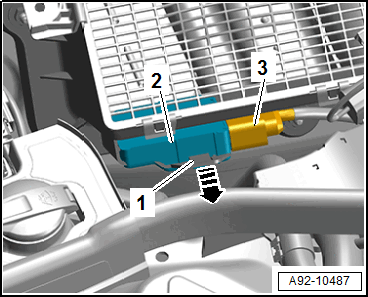

-- Release the retainer -1- -arrow-.
-- Remove the Windshield Washer Pump Control Module -J1100- -2- from the bracket and remove to the left.
-- Disconnect the connector -3-.
