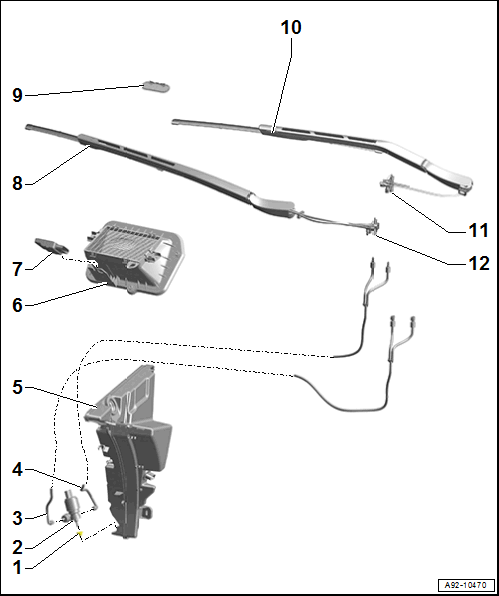

Overview - Windshield Washer System
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Grommet
- Windshield Washer Pump -V5-
- Washer Fluid Hose
- Washer Fluid Hose
- Washer Fluid Reservoir
- Fresh Air Intake
- Windshield Washer Pump Control Module -J1100-
- Right Washer Nozzle
- With Thermal Resistor 1 in Front Passenger Side Windshield Wiper Arm -Z141-
- Integrated into the wiper arm
- Cannot be replaced separately
- Refer to Windshield Wiper Arms, Removing and Installing .
- Refer to appropriate Service Information .
- Blind Cover
- Quantity: 2
- Left Washer Nozzle
- With Thermal Resistor 1 in Driver Side Windshield Wiper Arm -Z139-
- Integrated into the wiper arm
- Cannot be replaced separately
- Refer to Windshield Wiper Arms, Removing and Installing .
- Refer to appropriate Service Information .
- Washer Fluid Hose
- Washer Fluid Hose
