Windshield Wiper Arm, Removing And Installing: Removing

-- Switch the ignition on.

-- Activate "rear wiping" and let the wiper arm run to end position.

-- Switch off the ignition.

-- Carefully expand the cap -arrows- and lift off.

Fig 1: Identifying Cover

Courtesy of AUDI OF AMERICA, LLC

Vehicles without windshield wiper with integrated washer nozzles

-- Carefully remove the washer nozzle -2-.

Fig 2: Identifying Spray Jets And Hex Head Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the nut -1- one turn.

Continuation for all vehicles

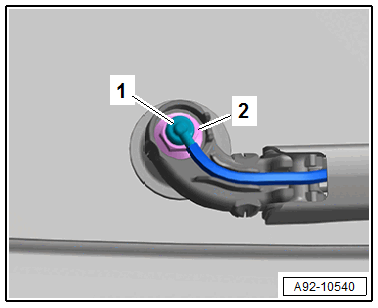

Vehicles with windshield wiper with integrated washer nozzles

-- Remove the washer nozzle -1- carefully.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the nut -2- one turn.

Continuation for all vehicles

-- Install an M6 nut -4- on the nut.

Courtesy of AUDI OF AMERICA, LLC

-- Position the Puller - Wiper Arm Kit - Puller 2:T10369/2  on the wiper arm -1-.

-- Position the thrust piece -2- on the windshield wiper axle.

-- Turn the bolt -3- clockwise until the windshield wiper arm -1- is removed.

-- Remove the nut completely and remove the windshield wiper arm -1-.
