Washer Nozzle For Laser Distance Regulation Control Module J1122, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the lock carrier cover. Refer to OVERVIEW - BUMPER COVER .

RS 6 Avant, RS 7 Sportback

-- Remove the bolts -arrows- and pull the bumper cover forward slightly.

Courtesy of AUDI OF AMERICA, LLC

Continuation for all vehicles

Version 1

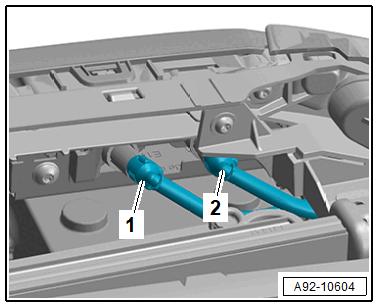

-- Release the clips and remove the washer fluid hoses -1- and -2-.

Courtesy of AUDI OF AMERICA, LLC

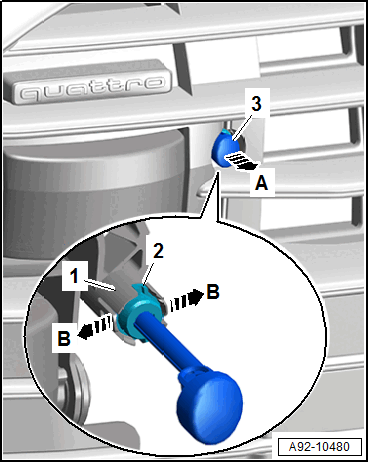

-- Pull the telescoping washer nozzle -3- out slightly -arrow A- and hold it in place.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -B arrows-.

-- Push out the washer nozzle -2- from the rear slightly out of the mount -1- and remove it forward.

Continuation for all vehicles

Version 2

-- Release the clips and remove the washer fluid hoses -1- and -2-.

Courtesy of AUDI OF AMERICA, LLC

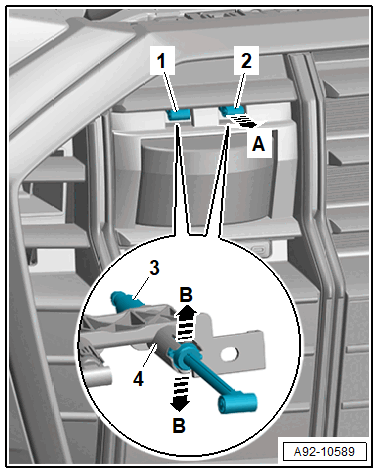

-- Pull the telescoping washer nozzle -1- and -2- out slightly -arrow A- and hold it in place.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -B arrows-.

-- Push out the washer nozzle -3- from the rear slightly out of the mount -4- and remove it forward.

Continuation for all vehicles
