Headlamp Washer System Pump V11, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

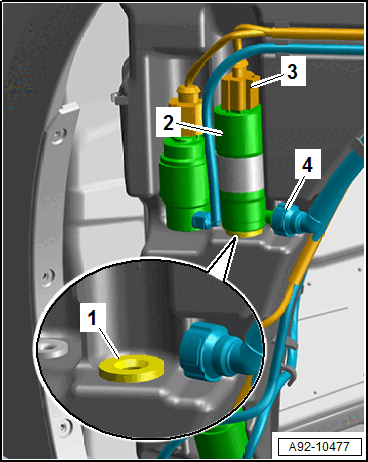

-- Remove the washer fluid reservoir far enough to make the Headlamp Washer System Pump -V11- accessible. Refer to Washer Fluid Reservoir, Removing and Installing .
-- Disconnect the connector -3-.
-- Place a drip tray under the washer fluid reservoir.
-- Release and remove the washer fluid hose -4-.
-- Remove the pump -2- upward.
