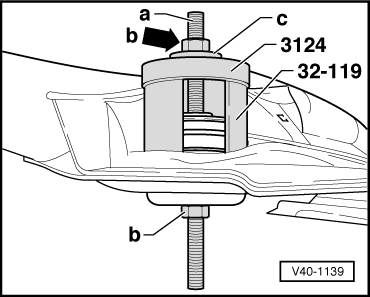

Fig. 4 Removing front subframe bushing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Required additional tools:

a - M10 threaded rod, approx. 200 mm (7-7/8 in.) long

b - Two M10 nuts

c - Large washer with 12 mm (1/2 in.) diameter hole

-- Tighten upper nut -b- (arrow) until bushing pulls out of subframe assembly.

NOTE:

Sleeve:32-119 must not apply force to bearing shoulder.
