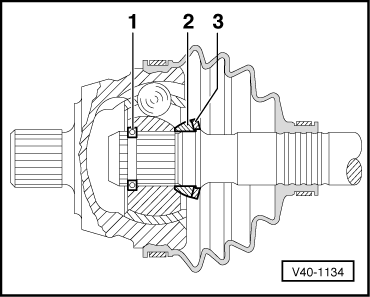

Fig. 5 Installation position for dished washer, spacer washer and circlip

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
GWWV40-1134Courtesy of AUDI OF AMERICA, LLC
  1. Circlip
  2. Spacer washer
  3. Dished washer
