Selector Lever Transmission Range Display Y5, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console insert. Refer to OVERVIEW - CENTER CONSOLE .

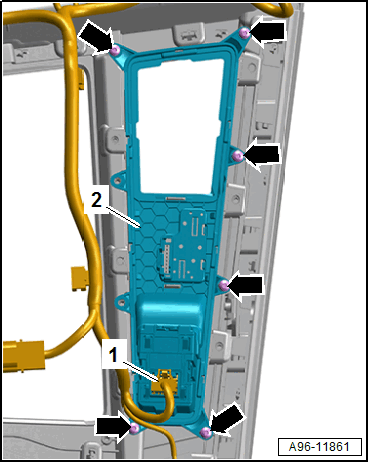

-- Disconnect the connector -1-.
-- Remove the bolts -arrows-.
-- Remove the Selector Lever Transmission Range Display -Y5- -2-.
-- If the selector lever transmission range display is being replaced, the following components must also be removed:
- Parking Brake Button -EX12-, removing. Refer to Parking Brake Button EX12, Removing and Installing .
