Glove Compartment Lamp W6, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

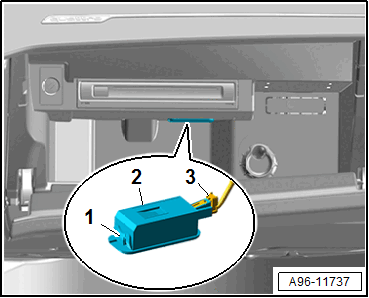

-- Press in the retainer -1- using a flat-head screwdriver.

GWWA96-11737Courtesy of AUDI OF AMERICA, LLC

-- Pry out the Glove Compartment Lamp -W6- -2-.

-- Disconnect the connector -3-.

Tip

If the glove compartment lamp cannot be removed as described, the glove compartment must be removed. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
