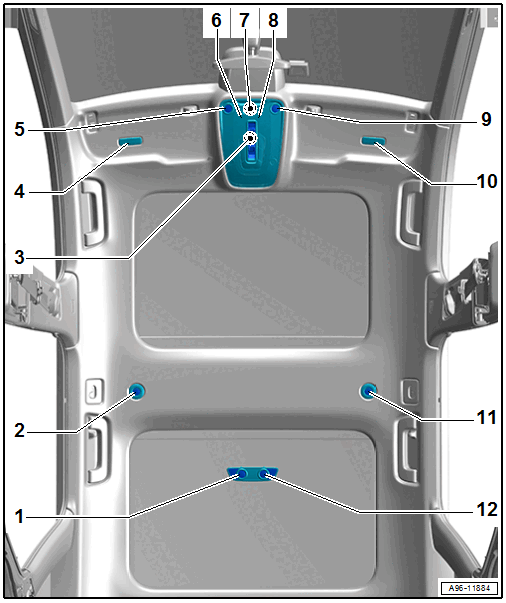

Component Location Overview - Roof Trim Panel Lamps
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Right Rear Reading Lamp -W12-
- For vehicles without rear panoramic roof
- Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING, VEHICLES WITHOUT REAR PANORAMIC ROOF .
- Right Rear Reading Lamp -W12-
- For vehicles with rear panoramic roof
- Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING, VEHICLES WITH REAR PANORAMIC ROOF 8.
- Front Interior Lamp -W1-
- Illuminated Vanity Mirror
- Front Passenger Vanity Mirror Lamp -W14-
- Driver Vanity Mirror Lamp -W20-
- Refer to DRIVER/FRONT PASSENGER VANITY MIRROR LAMP W20/W14, REMOVING AND INSTALLING .
- Right Front Reading Lamp -W66-
- Right Ambient Lighting
- Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- Left Ambient Lighting
- Left Front Reading Lamp -W65-
- Illuminated Vanity Mirror
- Driver Vanity Mirror Lamp -W20-
- Front Passenger Vanity Mirror Lamp -W14-
- Refer to DRIVER/FRONT PASSENGER VANITY MIRROR LAMP W20/W14, REMOVING AND INSTALLING .
- Left Rear Reading Lamp -W11-
- For vehicles with rear panoramic roof
- Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING, VEHICLES WITH REAR PANORAMIC ROOF .
- Left Rear Reading Lamp -W11-
- For vehicles without rear panoramic roof
- Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING, VEHICLES WITHOUT REAR PANORAMIC ROOF .
