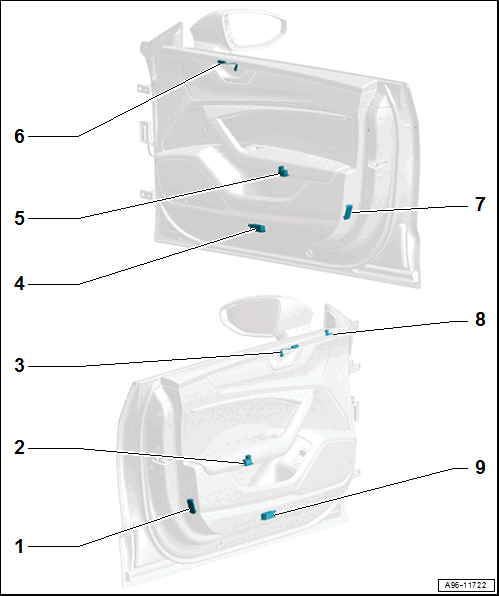

Component Location Overview - Front Door Lamps

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Left Door Warning Reflector
Left Door Storage Compartment Illumination Lamp -L255-
- Refer to DOOR STORAGE COMPARTMENT ILLUMINATION L255/L256/L257/L258, REMOVING AND INSTALLING .
Driver Side Interior Door Handle Illumination Lamp -L219-
- Refer to COMPONENT LOCATION OVERVIEW - REAR DOOR LAMPS .
Passenger Side Entry Lamp -W93-
- Refer to FRONT DRIVER AND PASSENGER SIDE ENTRY LAMP W92/W93, REMOVING AND INSTALLING .
Right Door Storage Compartment Illumination Lamp -L256-
- Refer to DOOR STORAGE COMPARTMENT ILLUMINATION L255/L256/L257/L258, REMOVING AND INSTALLING .
Passenger Side Interior Door Handle Illumination Lamp -L220-
- Refer to COMPONENT LOCATION OVERVIEW - REAR DOOR LAMPS .
Right Door Warning Reflector
Central Locking -Safe- Indicator Lamp -K133-
- Refer to CENTRAL LOCKING -SAFE- INDICATOR LAMP K133, REMOVING AND INSTALLING .
Driver Side Entry Lamp -W92-
- Refer to FRONT DRIVER AND PASSENGER SIDE ENTRY LAMP W92/W93, REMOVING AND INSTALLING .
