Component Location Overview - Door Ambient Lighting
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

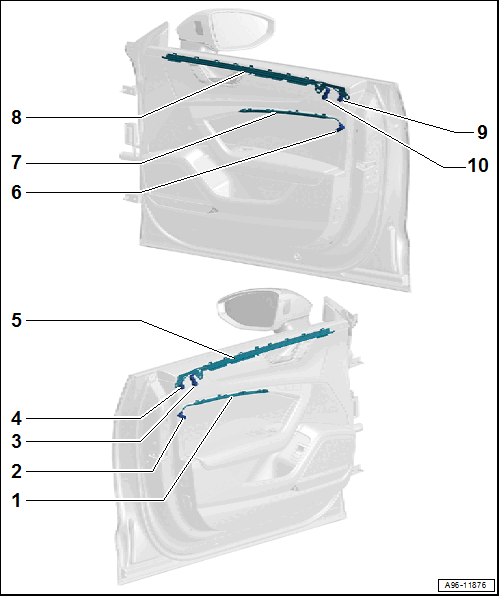

Front doors
- Fiber-Optic Cable for Door Storage Compartment Illumination
- Driver Side Door Ambient Lighting, Lamp
- : Driver Side Door Ambient Lighting Lamp -W86- (QQ1) / Left Front Door Ambient Lighting Bulb 1 -L199- (QQ2)
- Passenger Side Door Ambient Lighting Lamp -W87- (QQ1) / Left Front Door Ambient Lighting Bulb 1 -L199- (QQ2)
- Refer to FIBER-OPTIC CABLE FOR FRONT DOOR STORAGE COMPARTMENT ILLUMINATION WITH DOOR AMBIENT LIGHTING LAMPS W86/W87/L200/L199, REMOVING AND INSTALLING
- Exit Warning Lamp
- Driver Exit Warning Lamp -W111-
- Passenger Exit Warning Lamp -W112-
- Cannot be replaced separately
- Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
- Left Front Door Contour Illumination Lamp -L251-
- Cannot be replaced separately
- Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
- Fiber-Optic Cable for Door Opener Illumination/Exit Warning Lamp
- Cannot be replaced separately
- Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
- Driver Side Door Ambient Lighting, Lamp
- Passenger Side Door Ambient Lighting Lamp -W87- (QQ1) / Right Front Door Ambient Lighting Bulb 1 -L200- (QQ2)
- Driver Side Door Ambient Lighting Lamp -W86- (QQ1) / Right Front Door Ambient Lighting Bulb 1 -L200- (QQ2)
- Refer to FIBER-OPTIC CABLE FOR FRONT DOOR STORAGE COMPARTMENT ILLUMINATION WITH DOOR AMBIENT LIGHTING LAMPS W86/W87/L200/L199, REMOVING AND INSTALLING
- Fiber-Optic Cable for Door Storage Compartment Illumination
- Fiber-Optic Cable for Door Opener Illumination/Exit Warning Lamp
- Cannot be replaced separately
- Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
- Right Front Door Contour Illumination Lamp -L252-
- Cannot be replaced separately
- Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
- Exit Warning Lamp
- Front Passenger Exit Warning Lamp -W112-
- Driver Exit Warning Lamp -W111-
- Cannot be replaced separately
- Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

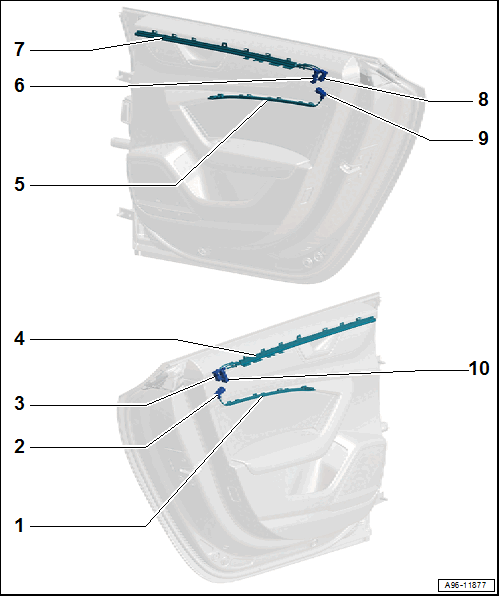

Rear doors
- Fiber-Optic Cable for Door Storage Compartment Illumination
- Rear Door Ambient Illumination, Lamp
- Driver Side Rear Door Ambient Light Lamp -W88- (QQ1) / Left Rear Door Ambient Lighting Bulb 1 -L201- (QQ2)
- Passenger Side Rear Door Ambient Light Lamp -W89- (QQ1) / Left Rear Door Ambient Lighting Bulb 1 -L201- (QQ2)
- Refer to FIBER-OPTIC CABLE WITH DOOR AMBIENT LIGHTING LAMP AND BULB W88/W89/L201/L202, REMOVING AND INSTALLING
- Left Rear Door Contour Illumination Lamp -L253-
- Fiber-Optic Cable for Door Opener Illumination/Exit Warning Lamp
- Cannot be replaced separately
- Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
- Fiber-Optic Cable for Door Storage Compartment Illumination
- Rear Exit Warning Lamp
- Passenger Side Rear Exit Warning Lamp -W114-
- Driver Side Rear Exit Warning Lamp -W113-
- Refer to DRIVER SIDE AND PASSENGER SIDE REAR EXIT WARNING LAMP W113/W114, REMOVING AND INSTALLING
- Fiber-Optic Cable for Door Opener Illumination/Exit Warning Lamp
- Cannot be replaced separately
- Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
- Right Rear Door Contour Illumination Lamp -L254-
- Rear Door Ambient Illumination, Lamp
- Driver Side Rear Door Ambient Light Lamp -W88- (QQ1) / Right Rear Door Ambient Lighting Bulb 1 -L202- (QQ2)
- Passenger Side Rear Door Ambient Light Lamp -W89- (QQ1) / Right Rear Door Ambient Lighting Bulb 1 -L202- (QQ2)
- Refer to FIBER-OPTIC CABLE WITH DOOR AMBIENT LIGHTING LAMP AND BULB W88/W89/L201/L202, REMOVING AND INSTALLING
- Rear Exit Warning Lamp
- Driver Side Rear Exit Warning Lamp -W113-
- Passenger Side Rear Exit Warning Lamp -W114-
- Refer to DRIVER SIDE AND PASSENGER SIDE REAR EXIT WARNING LAMP W113/W114, REMOVING AND INSTALLING
