Valet Parking Lock Button E536, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .



-- Disconnect the connector -2-.

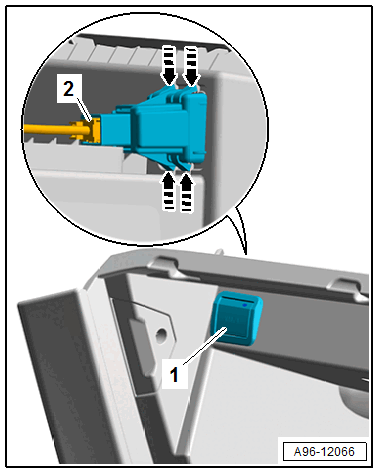

GWWA96-12066Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -arrows-.

-- Remove the Valet Parking Lock Button -E536- -1-.
