Rear Seat Adjustment Control Head E920, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the trim from the rear center armrest insert. Refer to OVERVIEW - CENTER ARMREST .

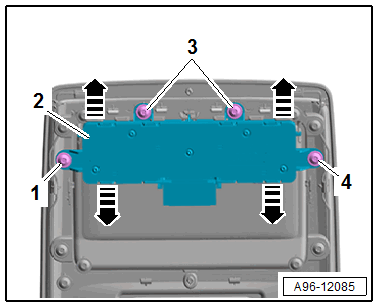

-- Remove the bolts -1-, -3- and -4-.
-- Release the retainers -arrows-.
-- Remove the Rear Seat Adjustment Control Head -E920- -2-.
