Parking Brake Button Ex12, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

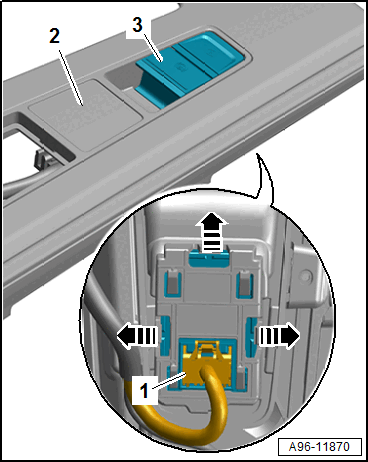

-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
-- Disconnect the connector -1-.
-- Release the retainers -arrows-.
-- Push out the Parking Brake Button -EX12- -3- upward from the selector lever transmission range display -2-.
