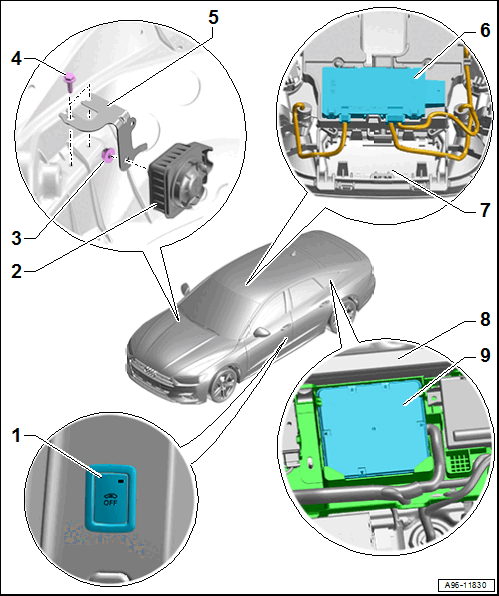

Overview - Interior Monitoring

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Interior Monitoring and Vehicle Inclination Deactivation Button -E616-
- Refer to INTERIOR MONITORING AND VEHICLE INCLINATION DEACTIVATION BUTTON E616, REMOVING AND INSTALLING .
Alarm Horn -H12-
- Refer to Alarm Horn H12, Removing and Installing .
Nut
- 7 Nm
Bolt
- Quantity: 2
- 8 Nm
Bracket
Anti-Theft Alarm System Sensor -G578-
- Refer to ANTI-THEFT ALARM SYSTEM SENSOR G578, REMOVING AND INSTALLING .
Front Roof Module -WX3-
Body
Comfort System Central Control Module -J393-
- Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, REMOVING AND INSTALLING .
