Alarm Horn H12, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

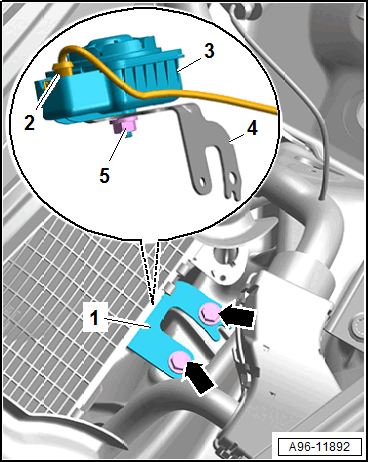

-- Slide the service cover -1- toward the rear -arrows- and remove it.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Remove the bolts -arrows- using the Socket :T40078
.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Remove the Alarm Horn -H12- -3- to the left.
-- Disconnect the connector -2-.
-- Remove the nut -5-.
-- Remove the bracket -4-.
